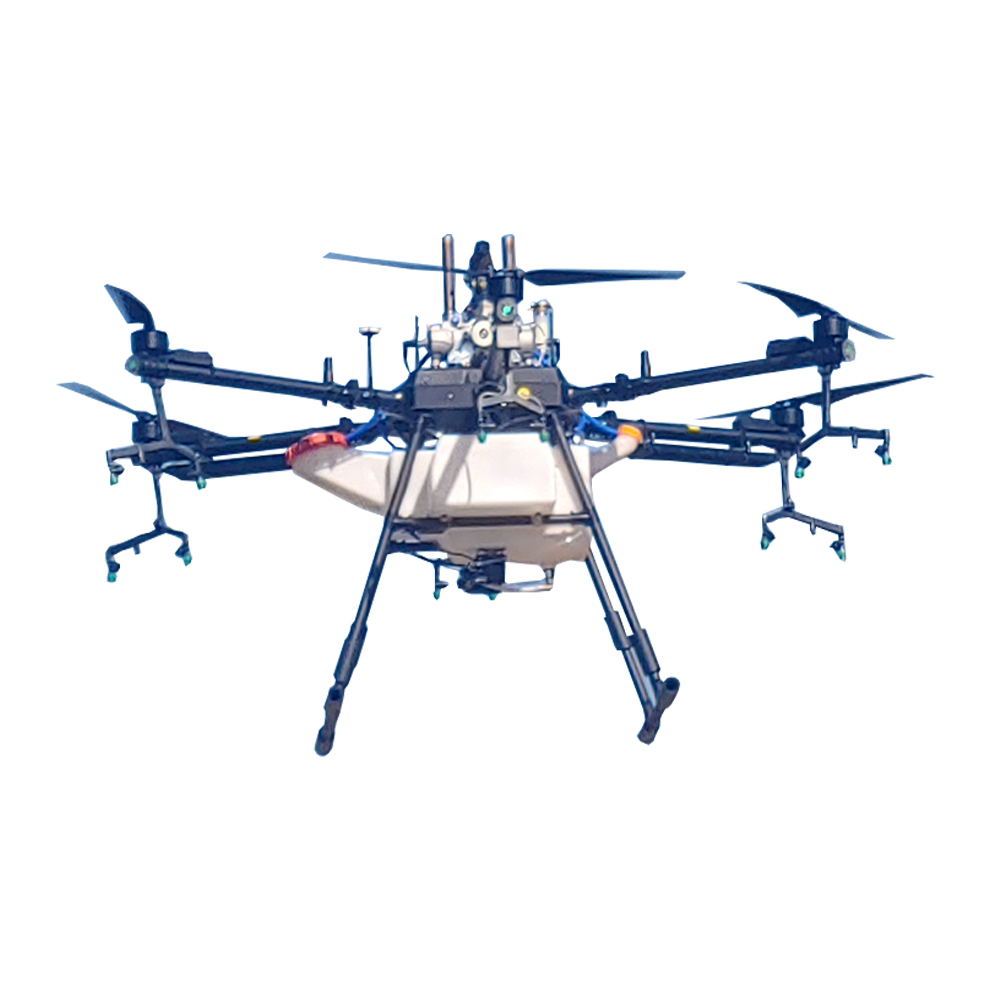

Spray drone FDAD-Q660L 60L agriculture crop spraying drones. 26L agriculture crop spraying drone is always the most popular. FDAD-Q660L 60Lagriculture drone is specially designed for the most popular 60L capacity. The effective capacity of the drone is 60L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q660L 60L series drones.
| Description | |||||
| wheelbase | 2300MM | ||||
| Unfolded size | 2300*2300*1350MM | ||||
| Folded size | 1050*1080*1350MM | ||||
| Tank capacity | 60L | ||||
| Frame weight | 13KGS | ||||
| Frame and spraying weight | 15KGS | ||||
| Frame and motor sets & Hybrid generator weight | 23.85KGS | ||||
| No-load takeoff weight | 60KGS(including 14S 1*22000mAh battery 7KGS) | ||||
| Full load Take-off weight | 120KGS | ||||
| Nozzle | Ceramic sprinkler head imported from Germany/China | ||||
| Number os nozzles | 4pcs | ||||
| Flight Speed | 3-8 Meter /Sec | ||||
| Spray width | 3-6 Meter /Sec | ||||
| Max spraying flow | 1.5-4 kg/min. （Max. 5kg/min.） | ||||
| spaying efficiency | 1.5-3 Acres/Min. | ||||
| Water Pump Pressure | 0.8mPa | ||||
| Delivery package size | Aluminum Box 1200*1200*1100mm 60kg | ||||
| Transport volume weight | 316kg | ||||
| The fuselage material | Carbon fiber composite | ||||
| Max flight time (no load) | 90min | ||||
| Max flight time (full load) | as the loading of fuel | ||||
| The tank volume | 60L | ||||
| Working temperature work | -15°C~45°C | ||||
| Signal effective range | 3km | ||||
| Flight Control systems | V7-AG | ||||
| Dynamic System | Hobbywing X9 MAX, tube: 45mm | ||||
| Spraying System | High Pressure Spray | ||||
| The battery specification | 24S 24000mah | ||||
| work power | 100V | ||||
| Charging Time | 0.5-1hour | ||||
| Recharge Cycles | 300-500 times | ||||
| Daily efficiency(6hours) | 300-500acres | ||||
| Storage ambient temperature |
For less than 3 months: – 20 ° C ~ 45 ° C For more than 3 months: – 22 ° C ~ 28 ° C |
||||
| Hover time | No-load flight Time: 90minutes (100V) | ||||
| Standby time of remote control | 8hrs | ||||
| Function | |||||
| 1. Android ground station, easy to use / PC ground station, full voice broadcast | |||||
| 2. Router Setting support, Fully Auto Flight operation with A,B Point operation. | |||||
| 3. One Button take-off and landing, More safety and time saving. | |||||
| 4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery. | |||||
| 5. Liquid Detection, Break Point record setting. | |||||
| 6. Battery Detection, Low Battery return and Record point setting available. | |||||
| 7. Terrain following Radar, Stable Altitude setting | |||||
| 8. Vibration Protection, Lost Contact protective, Tank empty detect | |||||
| 9. Motor Sequance Detection and Direction detection Function. | |||||
| 10. Dual Pump Mode | |||||
| 11. The night vision function | |||||
| 12. Three anti – one lamp | |||||
| Parameter of the Spraying system | |||||
|
Water Pump: 12S brushless water pump Nozzle: Extension rod Y shape double 1.0 nozzle Extension rod U shape double 1.0 nozzle Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent; |
|||||
| Main feature | |||||
| 1. Crossfolding Method ,The arms of the Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation. | |||||
| 2. Integrated Fuselage Frame The fuselage frame of the Q630LAgriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q630L has good durability and reliability. | |||||
| 3. Quick Release Battery & Tank The water tank of the Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q630L drone. It is convenient to replace the tank and battery. | |||||
| 4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water. | |||||
| 5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone. | |||||
