VTOL UAV FDG30 Mako shark 6 hours endurance with 1KG payload for survey & serveillance

VTOL UAV FDG30 Mako shark 6 hours endurance with 1KG payload for survey & serveillance

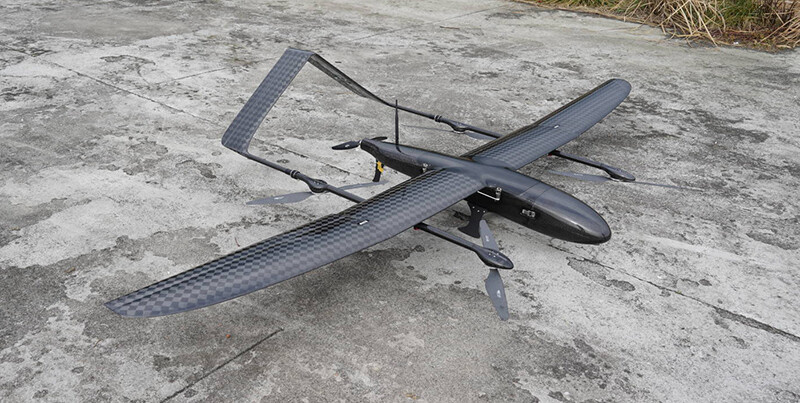

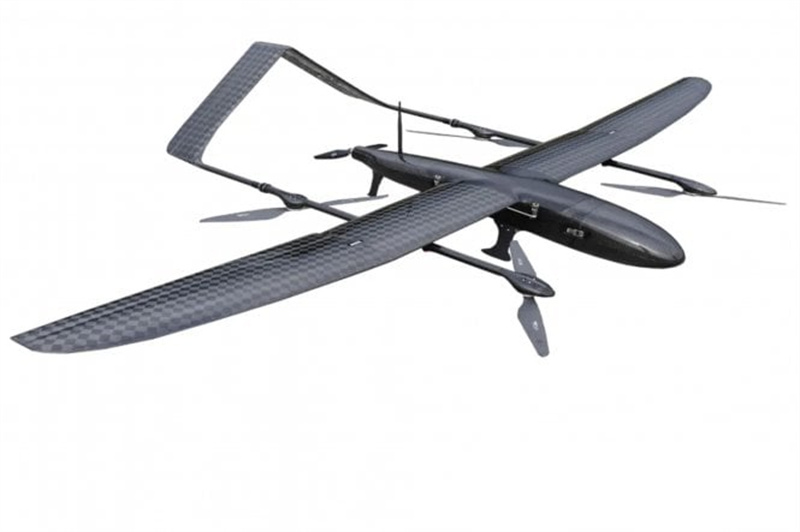

The FDG30 is a long endurance (6hrs+) VTOL for Payload upto 1.5kg

Reaching such flight times is a combination of lightweight high strength airframe, customized high efficiency motor combination, large capacity battery.

Specification

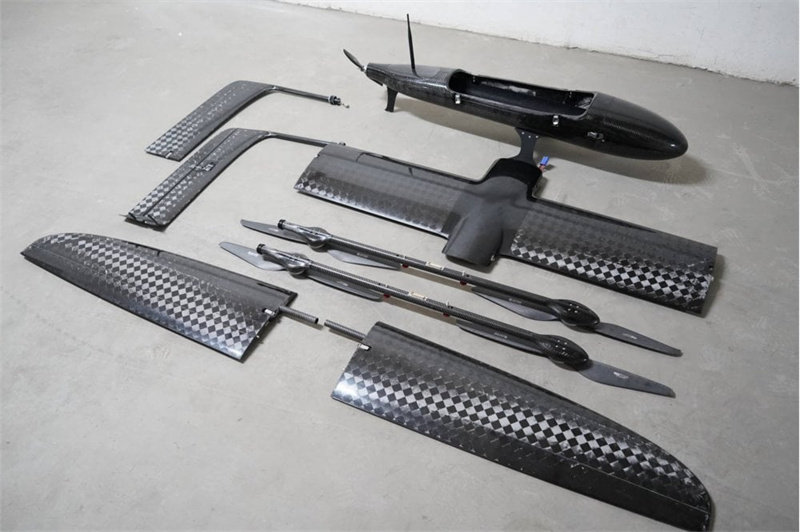

Body material: carbon fiber, composite material, etc.

Body length: 1800mm

Wingspan: 3000m

Landing gear height: 19cm

Landing gear installation position: below the rotor rod

Payload compartment size: 140mm*140mm*120mm

Mission compartment position: Front of the fuselage

Frame Structure weight: about 6kg

Maximum take-off weight: less than 16kg

Maximum payload: 2kg (standard load: 1-1.5kg)

Endurance:  with 1KG payload get 6 hours (test flight) – 10 hours (estimated limit) @ 18 m/s (depending on the battery and model version).

Maximum control distance: manual control by remote control/3km, ground station/standard 30km (up to 100km with numerical control)

Flight speed: economic cruise speed 15-22 m/s (range is almost unchanged)

Maximum flight speed: 30 m/s

Stall speed: 12m/s

Minimum circling radius: 150m

Maximum horizontal lift limit: 4000m above sea level

Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)

Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)

Operating environment: -20℃~45℃; can fly in light rain

VTOL Battery: 1x 5000mah 8S

Push Battery 1x 60000mah 8S

VTOL operation time: not less than 6.5min

Take-off and landing method: vertical take-off and landing

Vertical power propeller size: ~ 22inches

Fixed wing tail thruster propeller: ~ 15 inches
