Fire fighting drone

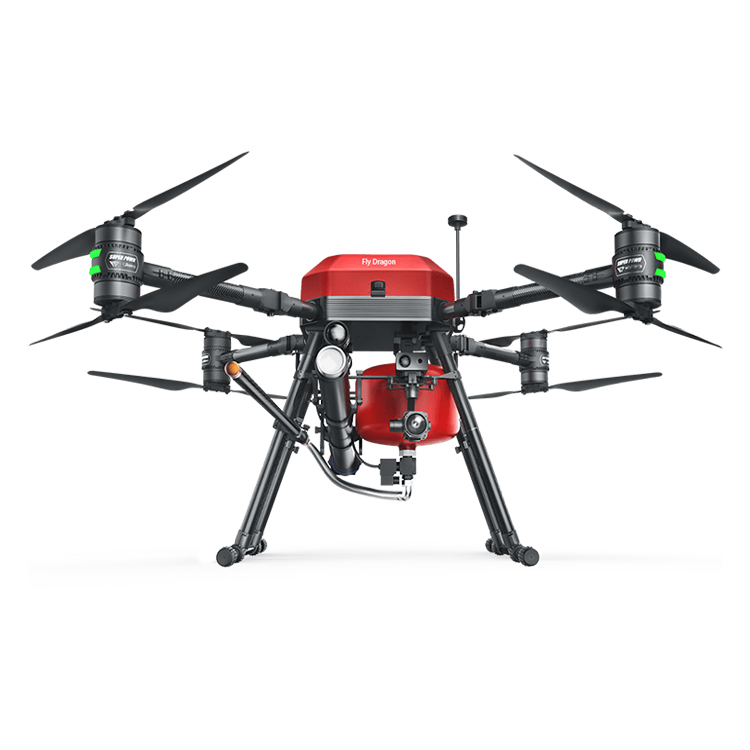

The high floors of the city are rising and the floors are getting higher and higher, which brings great challenges to fire rescue. The fire floor equipment on the floor is too high to quickly reach the control of the fire, and can only be allowed to ravage the fire, causing major fire accidents. In response to this problem, we have developed a dual fire-fighting drone that has a large load capacity, strong wind resistance, high throwing precision, and can fire fire extinguishers remotely in a complex fire weather environment. At the same time, it can also spray fire-extinguishing powder at close range. The double fire fighting drone is a special fire fighting drone for high-rise buildings.
It features a folding fuselage design, super-load and anti-shock design, fast access to high-rise fire scenes, high-powered cameras to observe fire, and firearms to launch firefighting drones.


Function:

1. 30x optical zoom camera (can adopt thermal cameras and Infrared cameras as client require).

2. Launch extinguishing system to break glass window and blow ABC powder extinguishing agent.

3. Carry Lidar for Intelligent obstacle avoidance system.

4. Night vision aiming system.

5. Carry ABC powder extinguishing agent.

6. Electronic quick control in APP software.

7.      IP65 three defense capabilities.

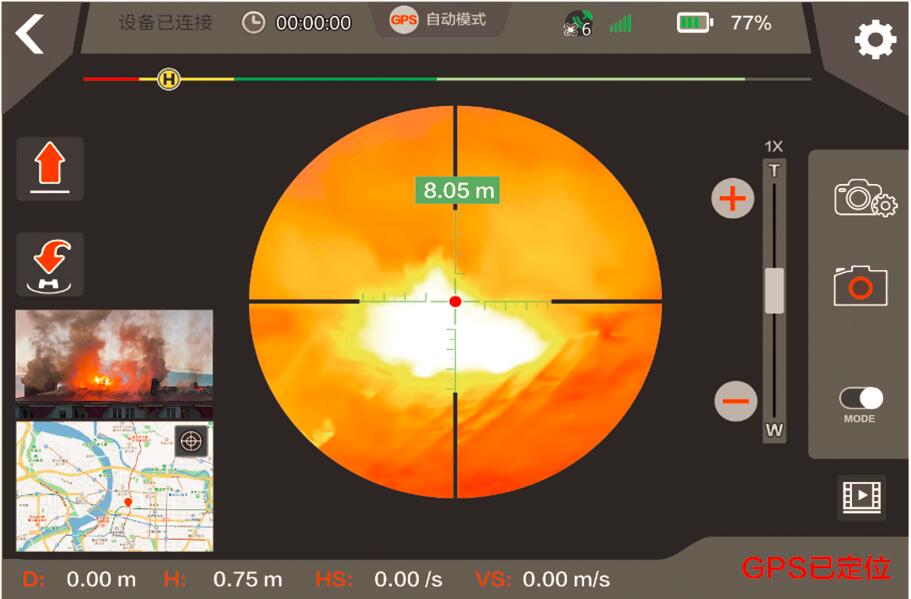

Ultra-strong load and anti-shake design, combined with high-powered scope and high frame rate camera with night vision function, high launch accuracy, capable of remotely and accurately launching fire extinguishers in complex fire weather conditions. Through the picture transmission, the aiming target point is displayed on the ground control end in real time, which greatly improves the shooting accuracy and improves the rescue efficiency.
Ultra-strong load and anti-shake design, combined with high-powered scope and high frame rate camera with night vision function, high launch accuracy, capable of remotely and accurately launching fire extinguishers in complex fire weather conditions. Through the picture transmission, the aiming target point is displayed on the ground control end in real time, which greatly improves the shooting accuracy and improves the rescue efficiency.


Fire fighting drone

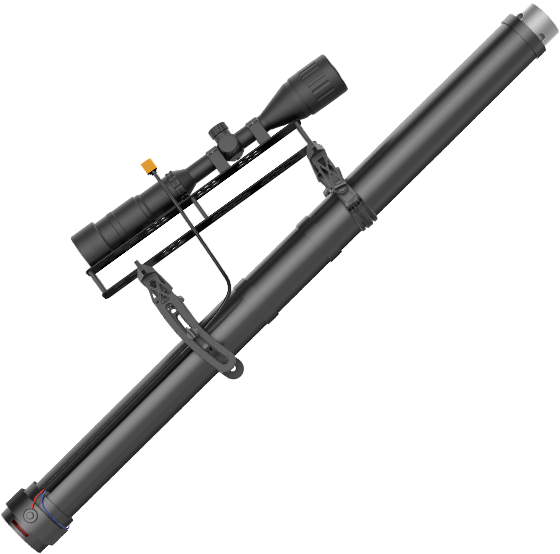

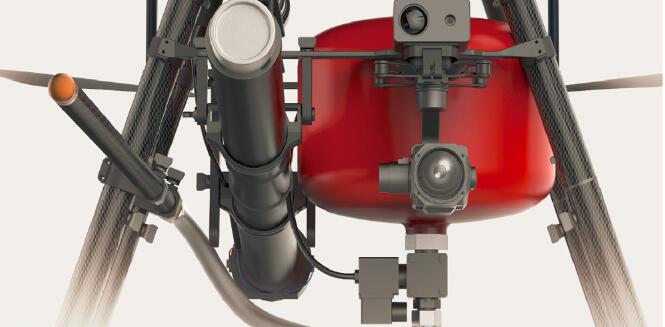

Under the fuselage of the double-fired drone, a rocket fire extinguisher  and fire extinguisher are mounted. The fire power of the fire is the rocket launching power system. The effective launching distance is 40 meters, and the fire extinguishing tube is 4.8 meters in length (the shortest can bead justed to 1.2). Meter). Fire-fighting sets and fire extinguishers are filled with special fire-extinguishing agents. Under high-floor scenes, fire source points can be accurately and effectively hit, providing high-altitude fire suppression for fire rescue.
Fire fighting drone

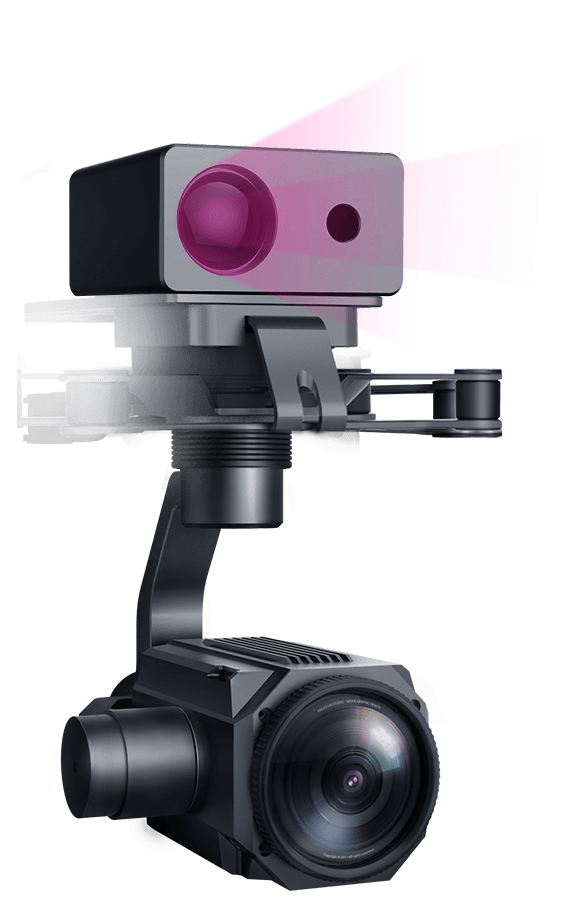

Using laser radar technology, the intelligent obstacle avoidance system is made of high-precision sensors. The laser ranging can reach 100m, and
it can recognize obstacles other than 3-15m (adjustable) in the front direction and brake deceleration to prevent accidental operation. Risk to protect your flight safety. Double protection against obstacles and ranging makes your flight safer and increases the probability of rescue.

Fire fighting drone
Videos



Specifications

Aircraft
Symmetrical motor wheelbase 1500 mm
Fuselage size unfold: 1150×1150×760 mm; fold: 650×650×760 mm
Max. Take off weight 45 kg
Propellers Diameter X screw pitch: 30×9.9 inch; Single weight: 160 g
Motor KV value: 100 rpm/V; size of the stator: 81×20 mm; Weight: 630 g
ESC sustained current: 80A; battery: 6~12S; PWM input level Signal: 3V/5V compatible; Compatible frequency: 50~500 Hz
Battery Voltage: 45.6V; capacity: 44000 mAh; energy: 2006.4 Wh; Type: LiHV 12S; discharge current: 25C
Max. Rising speed 5 m/s
Max. Lowering speed 3 m/s
Max. Horizontal flight speed Sport mode: 8 m/s(windless); Attitude mode: 15 m/s(windless)
Max. Pitch Angle 25°
Max. rotational angular velocity pitch axis: 120 °/s, Heading axis: 120 °/s
Max. Bearable wind speed 14 m/s
Max. Flight altitude 5000 m
Max. Flight altitude(GPS) Vertical: ±0.5 m, Level: ±1.5 m (when GPS positioning is working normally)
Max. endurance 35 mins
Gimbal and surveillance camera
Gimbal size 136×98×139 mm
Gimbal weight 452 g
Gimbal input voltage 12 V
Gimbal stability system 3 axis (pitch, roll, level)
Gimbal angular control accuracy Static: ±0.008°; Dynamic: ±0.02°;Anti-shake : ±0.008°
Gimbal controllable rotation range pitch:-110° to +60°;level :±150°;roll :±10°
Gimbal control speed pitch:30 °/s;level :30 °/s
Camera lens pixel 1200 million pixels
Camera focus time 7~8 seconds
Camera sensor 1/2.3 SONY IMX117 CMOS
Camera ISO range Video:100~3200;photo:100~1600
Camera video recording resolution 4K 30 fps
Camera resolution 3840×2160
Camera focal length 6.7-134.5 mm
Camera zoom multiplier 30 X optical zoom
Camera zoom speed about 2.0 second
Horizontal camera Angle 59.8 ° ~ 3.0 ° (wide Angle - telescopic)
Camera proximity 5000mm (wide Angle - telescopic)
Camera video storage code stream Max. 64 Mbps
Camera compression standard H.264 / H.265
Camera supports file storage format JPG/MP4
Camera supports memory card type SD/SDHC/SDXC micro-SD card with maximum support of 128 G and transmission speed of Class10 or above or reaching uhs-1 rating
Sighting
Magnification 3~9 times
Extent 33 cm
Weight 590 g
Pipe diameter 25.4 mm
Objective 40 mm
Exit pupil distance 7~8 cm
Differentiation of line Cross point differentiation
Differentiation of material Metal Wire differentiation
Focus Mode Objective lens focusing
Accommodation mode Swivel lock hand mode
Lighting system Red & Green double light
Regulating variable one click a quarter of an inch from 100 yards away
Lidar ranging obstacle avoidance system
Distance measuring range 100m
Range of obstacle perception 3~15m(adjustable)
FOV Level 20°;Vertical 3°
Survey frequency 10kHz
Fire extinguishing system
Model of fire extinguisher launcher CM60 airborne transmitter
Outside diameter of launcher tube φ67 mm
Max. Outside diameter φ 70mm
Emitter length 1000 mm
Emitter weight ≤ 1400 g
Fire system CM60 rocket boosts ABC dry powder fire extinguishing projectile
Transmitter trigger voltage 12V~24 V
Transmitter trigger current ≥ 700 m A
Life of transmitter ≥3 Years/100 Times
Fire extinguishing tank
Fire extinguishing tank material HP295
Tank weight 8.7 kg
Net dry powder content 3 Kg
Filling pressure 1.2 MPa
Installation Hang up fast
Open mode electronic fast
Powder spraying pipe Material: carbon fiber; Length: unfold4.8 m (minimum shrinkage is 1.2m)
Fire extinguishing System
Length 995 mm
full weight ≤3000 g
striking current ≥ 700 mA
safe current ≤150 mA
Initial emission velocity ≤35 m/s
Max. range ≤40 m
Single fire extinguishing capability 9 m3 (Total flooding)
Fire extinguishing agent Species: ABC super fine dry powder; weight:≥1100g Features: Fully sealed, waterproof,moisture-proof and non-explosive
Delay time for extinguishing agent injection ≥5 s
Life of fire system 3Years
Remote control
Fuselage size 65×174×62mm(L×W×H)
Weight 970 g
Working frequency 2.4 G
Working current 1000 mA
Signal effective distance about 2Km (open, no occlusion, no electromagnetic interference)
Video output interface HDMI
Power supply mode Built-in lithium electricity 7.4V 6000mAh LiPo 2S
Mobile device support For tablets or mobile phones



Drones used for firefighting operations are equipped with add-ons, including:

  • Thermal cameras to identify fire sources and hot spots;
  • Infrared cameras that detect humans and animals;
  • Extinguishing agent takes, including powder, foam, water, or specialized liquids;
  • Mist distributors that spray a cooling mist to let drones and firefighters get closer to a fire;
  • High-definition cameras that can help identify products and codes on packaging to determine potentially dangerous and flammable goods.
