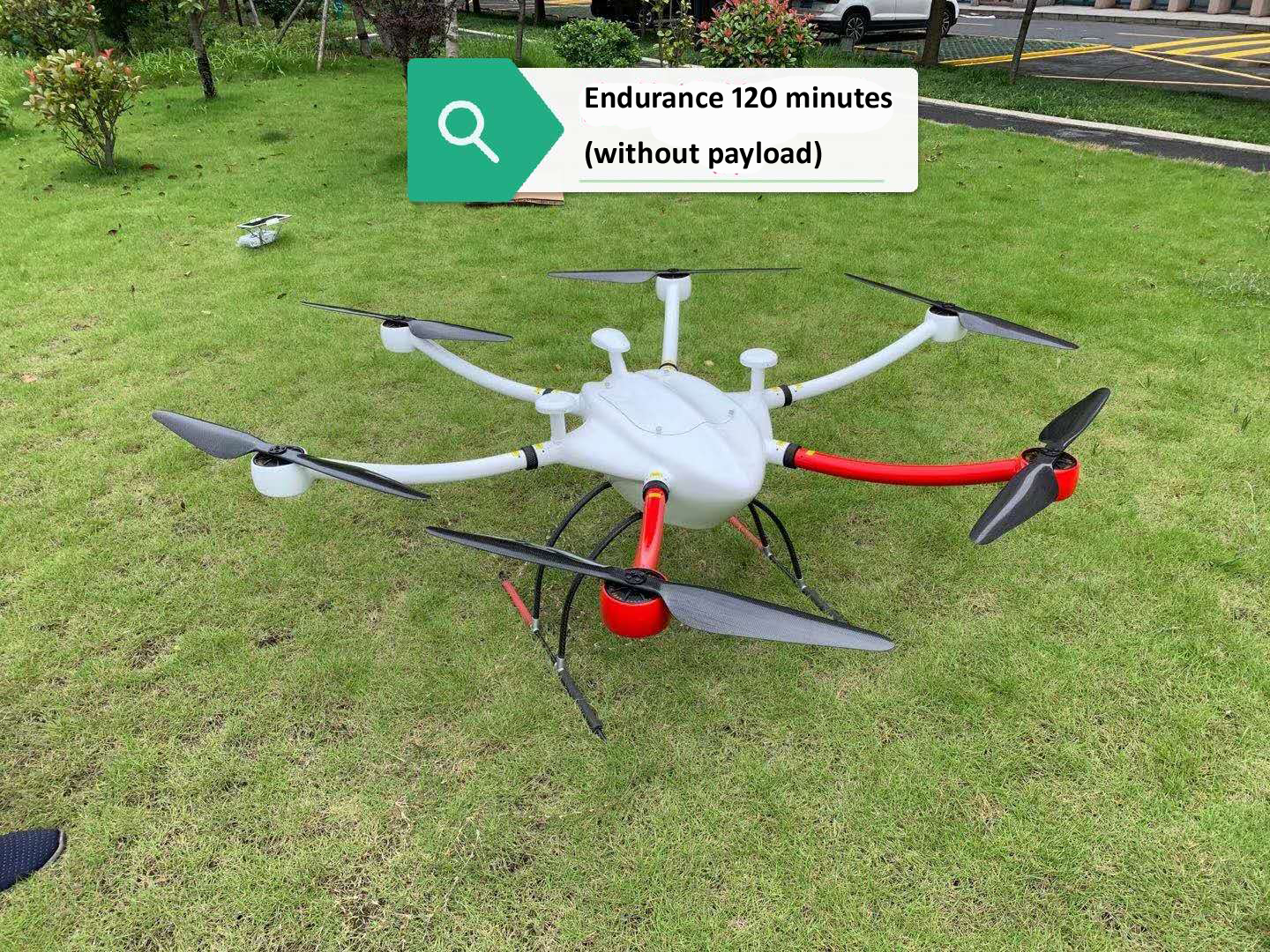

FD1600 is a fire-fighting drone independently researched and developed by FlyDragon UAV Company. Its modular design only takes 2 minutes to install. It adopts a carbon fiber integrated machine frame, which is dust-proof and waterproof. IP56. FD-1600 is equipped with 6 fire extinguishing balls, which can quickly control the fire before the firefighters arrive. FD-1600 is equipped with a 30X camera to provide a strong guarantee for the commander to observe the fire and find the trapped people

Specifications:

Aircraft Type: Hexacopter
Wheelbase: 1660mm
Airframe Material: Carbon Fiber And Composite Materials
Package Size: 400*730*930mm
Drone frame Weight : 2.7kg
Max. Take-Off Weight:26kg
Max. Payload: 12kg
Flight time: 120minutes(without payload)
80minutes(3KG payload)
40minutes(10KG payload)
Max. Climb Speed: 4m/s
Cruise Speed: 10m/s
Max. Flying Speed: 15m/s
Max. Altitude AMSL: 4000m

Six fire extinguisher balls

Suit for Ball size and weight: 150mm(1.3kg)
Release mode: Single/double release
Suggested release height: 5-50m
Response time:3-5s
Fire extinguishing range: 3 m2 / ball(just for reference)
Hovering Accuracy:Vertical ±1m, Horizontal±1.5m
Max. Wind Resistance： Level 6
Operation Temperature： -20～60℃
IP Rating：IP56
