FDS-35 3kw Tethered power supply

FDS-35 3kw Tethered power supply  airborne power supply provides stable voltage output, the drone battery has no power loss and being charged, simple operation, the whole process of drone take-off and landing does not need to operate the tethered box adaptive pull automatic take-up and pay-off, support flight altitude: 50/100 (mooring 55/110, reserved safety length) support take-off weight: 10~15kg, flight duration: ≥48h

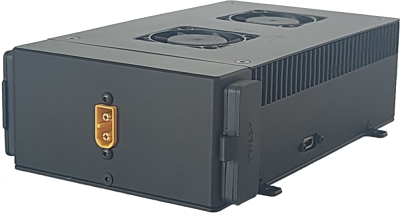

Airborne power supply for the air unit

Airborne power supply for the air unit

Input voltage: 580~810Vdc wide range input

Output voltage: 25Vdc±1% or 50Vdc±1%, constant regulated output, support voltage customization

Output power: rated long-term output ≥ 3000W, short-time peak output ≥ 3500W

Communication function can be equipped with CAN communication to report voltage, current, temperature data and working status information

Installation: Reserved installation accessories, screwed fixed

Heat dissipation mode: The external fan actively dissipates heat, and the air duct is reserved for forced air cooling

Size: 165×93×48±0.5mm, without connectors

Weight: 910±10g, without external connectors and wires

Degree of protection: IP54

Tethered cables

Material: silver-plated lightweight high-temperature resistant aviation line, lightweight high-temperature resistant sheath

Tensile strength: ≥20kg, resistant to repeated retraction and release ≥ 500

Dielectric strength: ≥3500Vdc, 1min, no breakdown

Cable length: standard length 100m, optional customization, support up to 165m

Outer diameter: 2.3±0.1mm

Weight: 10±0.5g/m

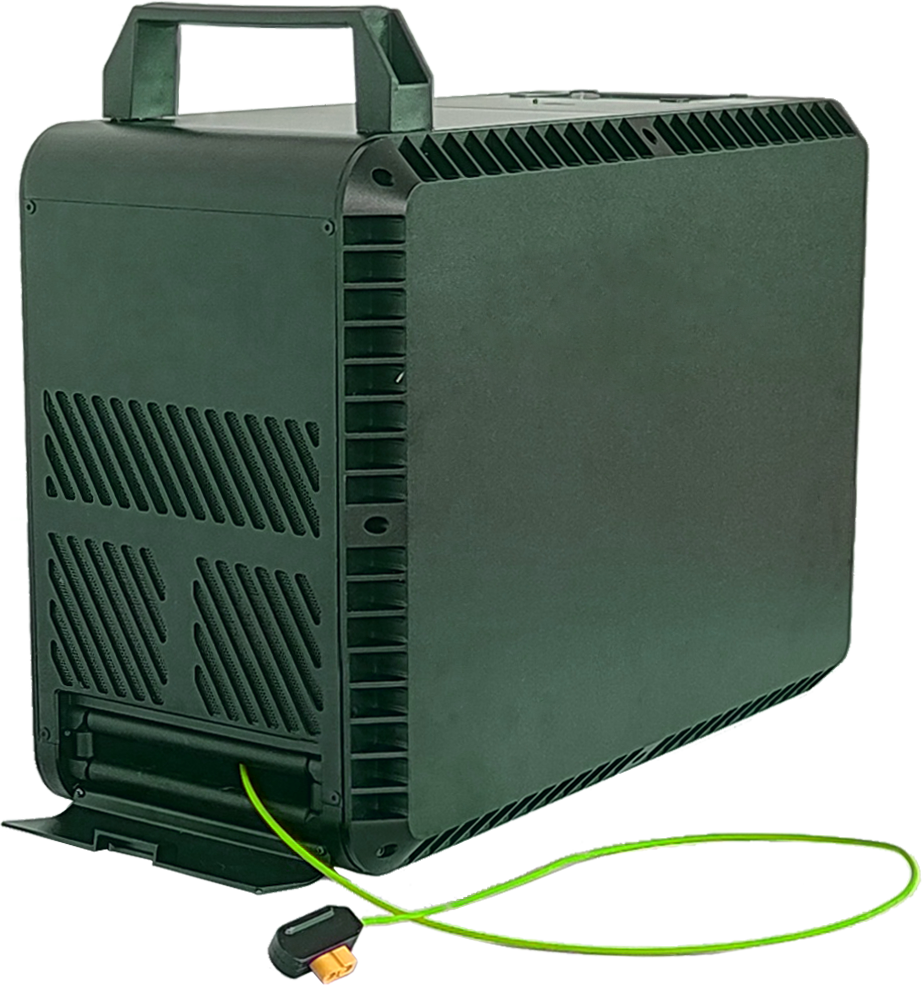

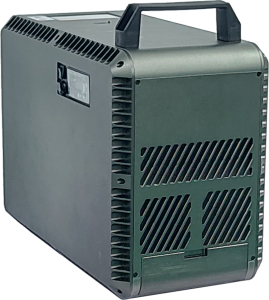

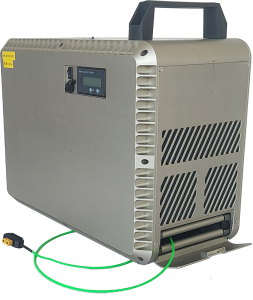

Ground tethered box

Input voltage: 190~240Vac wide range input, single phase 220Vac, frequency 50/60Hz

Output voltage: 600~800Vdc adjustable, factory default 800Vdc

Output power: rated long-time output ≥ 3500W, short-time peak output ≥ 4000W

Take-up speed: 0~2m/s, adjustable gear

Take-up pull: 0~10N, adjustable gear

Data communication: wired communication function, support remote display and control, support client data viewing and download

Data display: output voltage, output current, output power, pay-off length, running time, equipment temperature, total power consumption, fault record data and status

Setting and adjustment: setting and adjusting parameters such as take-up and pay-off force and speed, date and time, voltage, safety meters, alarm temperature, etc., support Chinese and English switching

Alarm and reminder: When the fault occurs, the screen displays the fault content, and the buzzer reminds you loudly

Automatic take-up and pay-off: synchronous retraction and release with the take-off and landing of the drone, adaptive adjustment of tension, and backup of power take-up and pay-off, display and control when there is no external power supply

Carry-on: hand-carried, equipped with a backpack

Dimensions: 360× 180 × 260±0.5 mm in height, without feet and external accessories

Weight: 8.5±0.2kg, without tethered thread

Degree of protection: IPx4

Language: Chinese, English, Korean, Russian

Support drone take off weight: ：10~15kg
