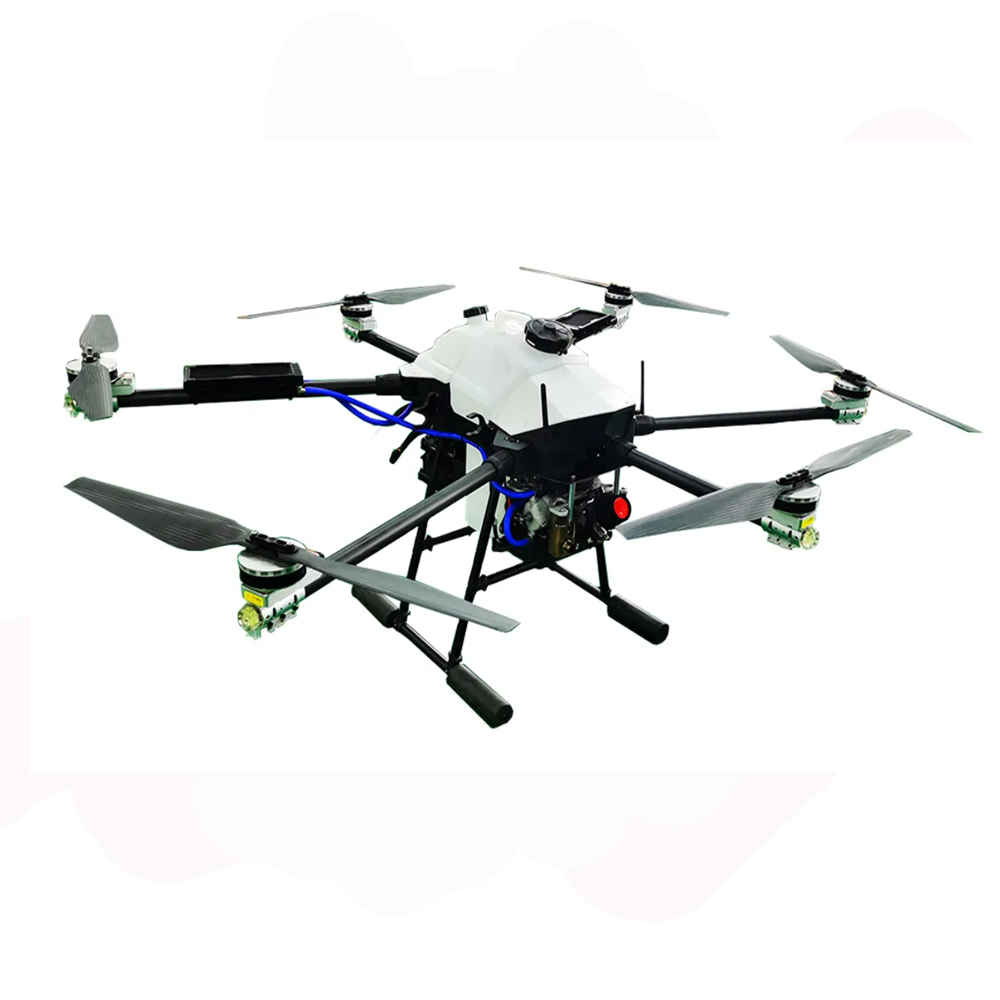

Hybrid crop spraying drone is features a gasoline + electric power system with great flight times and easy maintenance! This hybrid drone for crop spraying is portable thanks to folding arms and the modular design. The FD-H620L crop dusting UAV can be used for any spraying missions – use it for agricultural, solar panel cleaning, roof spraying and anything else where a spraying drone would save you time and money! The FH620L crop sprayer Hybrid is perfect for customers who don’t want to deal with battery charging or storage. This spraying UAV is also a great candidate for extreme cold or hot climates where drone batteries suffer.
Using drones for agriculture increases the precision and efficiency with which farmers can work, and makes it easier to make informed land management decisions. Drones can be deployed for a wide variety of tasks, including monitoring of livestock and the health of crops, estimation of soil conditions, planting of future crops, and countering infections and pests.
This powerful propulsion system allows the UAV to carry up to 20 litres of liquid in total (including the fertilizer), with a maximum takeoff weight of 65 kg. The drone can therefore operate for longer and cover more farmland in a single flight, without the need for farmers to take heavy batteries out into the field.
| wheelbase | 2028MM | ||||
| Unfolded size | 2643*2569*885MM | ||||
| Folded size | 1192*623*885MM | ||||
| Tank capacity | 20L | ||||
| Frame weight | 10.85KGS | ||||
| Frame and spraying weight | 12.5KGS | ||||
| Frame and motor sets & Hybrid generator weight | 37.5KGS | ||||
| No-load takeoff weight | 37.5KGS(including 1*14S 10000mAh battery 3.6KGS) | ||||
| Full load Take-off weight | 65KGS | ||||
| Nozzle | Ceramic sprinkler head imported from Germany/China | ||||
| Number os nozzles | 4pcs | ||||
| Flight Speed | 3-8 Meter /Sec | ||||
| Spray width | 3-6 Meter /Sec | ||||
| Max spraying flow | 1.5-3 kg/min. （Max. 4kg/min.） | ||||
| spaying efficiency | 1.5-3 Acres/Min. | ||||
| Water Pump Pressure | 0.48mPa | ||||
| Delivery package size | Aluminum Box 1300*650*900mm 45kg | ||||
| Transport volume weight | 152kg | ||||
| The fuselage material | Carbon fiber composite | ||||
| Max flight time (no load) | 45min(with 3L fuel) | ||||
| Max flight time (full load) | Continutes working | ||||
| The tank volume | 20L | ||||
| Working temperature work | -15°C~45°C | ||||
| Signal effective range | 2km | ||||
| Flight Control systems | Boying | ||||
| Dynamic System | Hobbywing X9 , tube: 40mm | ||||
| Spraying System | High Pressure Spray | ||||
| The battery specification | 14S 16000mah*1PCS | ||||
| work power | 58V(14S) | ||||
| Charging Time | 0.5-1hour | ||||
| Recharge Cycles | 200-300 times | ||||
| Daily efficiency(6hours) | 300-500acres | ||||
| Storage ambient temperature |
For less than 3 months: – 20 ° C ~ 45 ° C For more than 3 months: – 22 ° C ~ 28 ° C |
||||
| Hover time |
No-load flight Time: 45minutes Full-Load flight time: continue working with fuel added |
||||
| Standby time of remote control | 8hrs | ||||
| Function | |||||
| 1. Android ground station, easy to use / PC ground station, full voice broadcast | |||||
| 2. Router Setting support, Fully Auto Flight operation with A,B Point operation. | |||||
| 3. One Button take-off and landing, More safety and time saving. | |||||
| 4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery. | |||||
| 5. Liquid Detection, Break Point record setting. | |||||
| 6. Battery Detection, Low Battery return and Record point setting available. | |||||
| 7. Terrain following Radar, Stable Altitude setting | |||||
| 8. Vibration Protection, Lost Contact protective, Tank empty detect | |||||
| 9. Motor Sequance Detection and Direction detection Function. | |||||
| 10. Dual Pump Mode | |||||
| 11. The night vision function | |||||
| 12. Three anti – one lamp | |||||
| Parameter of the Spraying system | |||||
|
Water Pump: 12S brushless water pump Nozzle: Extension rod Y shape double 1.0 nozzle Extension rod U shape double 1.0 nozzle Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent; |
|||||
| Main feature | |||||
| 1. Crossfolding Method ,The arms of the H616L are folded in a staggered way, minisize the folding size, more convenient for transportation. | |||||
| 2. Integrated Fuselage Frame The fuselage frame of the H616L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the H616L has good durability and reliability. | |||||
| 3. Quick Release Battery & Tank The water tank of the H616L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the H616L drone. It is convenient to replace the tank and battery. | |||||
| 4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water. | |||||
| 5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone. | |||||
