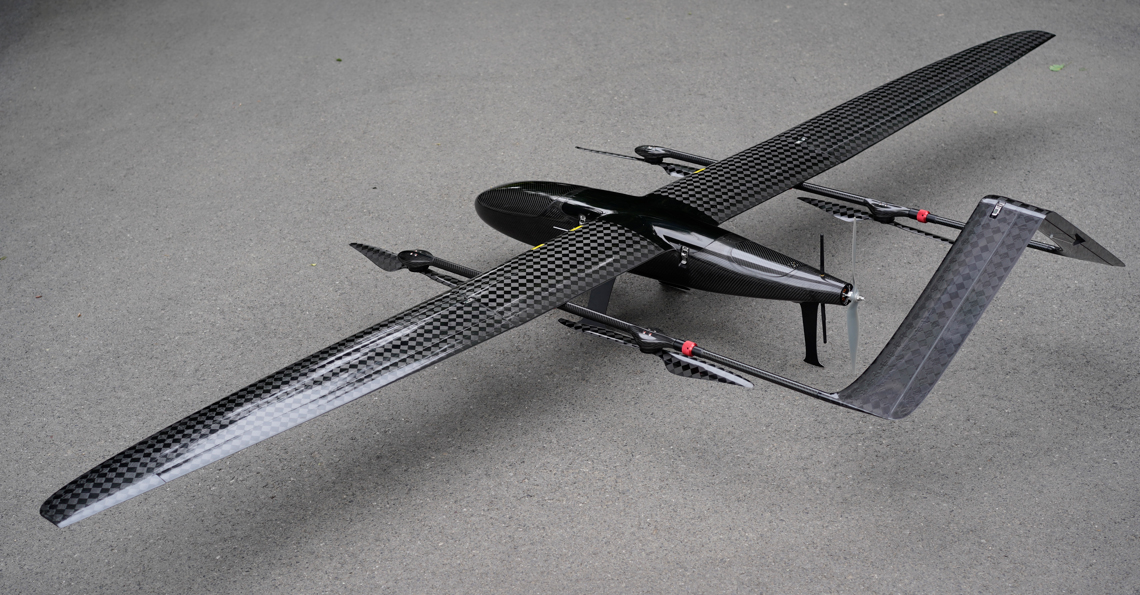

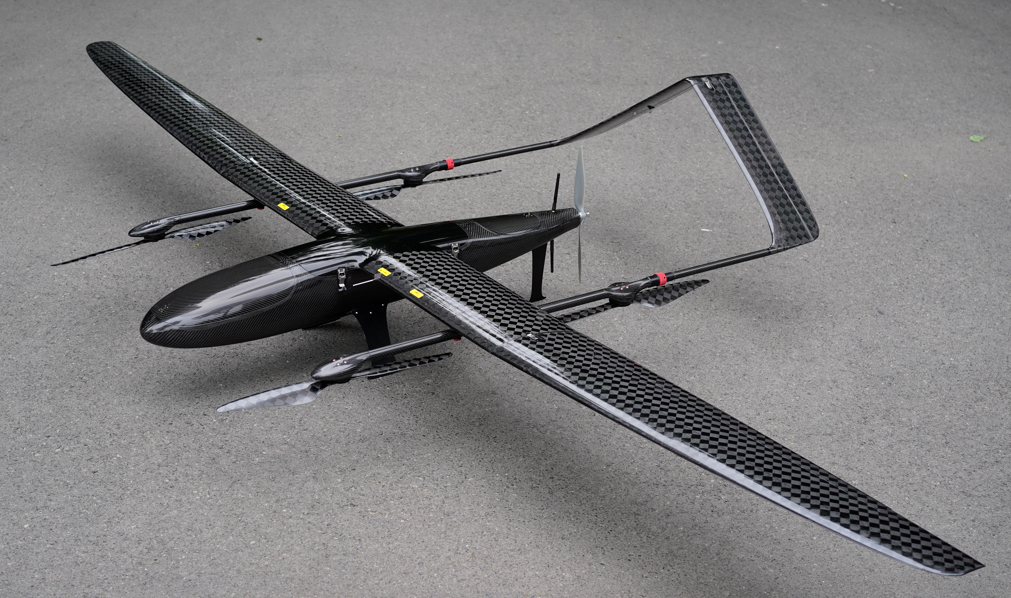

VTOL UAV FDG40 8 hours endurance with 1KG payload for survey & serveillance

VTOL UAV FDG40 is developed base on FDG30 Mako shark, compare to FDG30, FDG40 wingspan increase 70cm, The outer width of the nose has increased to 21 cm, and the tail compartment has also been increased to 21 cm. At the same time, the size of the tail compartment has been enlarged and the antenna installation position has been designed.

FDG40 use 12S 60000mah for fixed-wing battery and use 12S 4500mah for VTOL battery, endurance 4.5 hours with 4kg payload,  endurance 8 hours with 1kg payload.

Specification

Body material: carbon fiber, composite material, etc.

Body length: 1750mm

Wingspan: 4020m

Payload compartment size: 170mm*170mm*120mm

Mission compartment position: Front of the fuselage

Maximum take-off weight: less than 20kg

Maximum payload: 4kg (standard load: 2kg)

Endurance: 8 hours with1KG payload(flight speed 20m/s)

Maximum control distance: manual control by remote control/3km, ground station/standard 30km (up to 100km with numerical control)

Flight speed: economic cruise speed 65-80 km/h

Maximum flight speed: 30 m/s

Stall speed: 14m/s

Minimum circling radius: 200m

Maximum horizontal lift limit: 4000m above sea level

Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)

Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)

Operating environment: -20℃~45℃; can fly in light rain

VTOL Battery: 1x 4500mah 12S

Push Battery 1x 60000mah 12S
