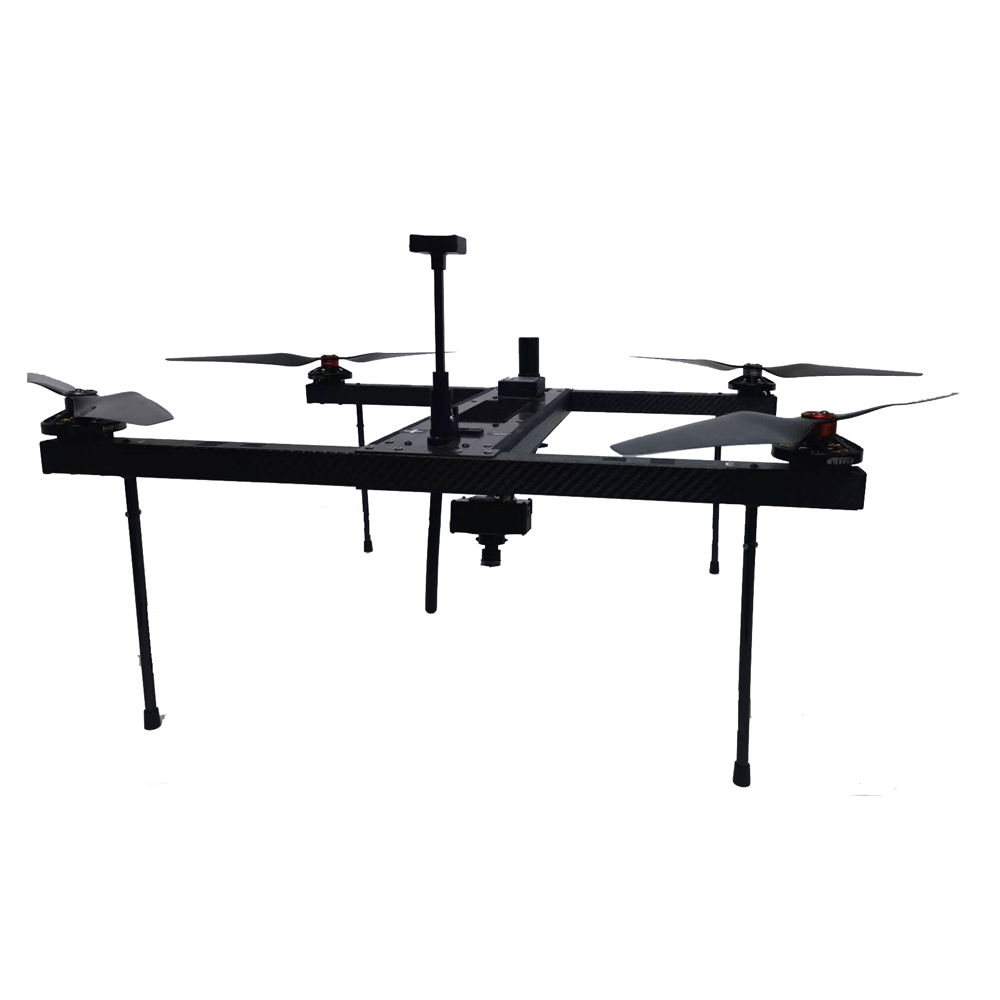

FD520mapping drone Multi-rotor UAV is a 4KG multi-rotor flight carrier platform, drone weight 3kg, max payload 1kg, It is portable, easy to use, easy to operate, efficient and stable, wind-resistant and durable.

Specifications:

Symmetrical motor wheelbase: 680mm
Dimensions: 520mm x 430mm x 225mm
Propeller Specifications: 1555 Efficient Silent Carbon Propeller
Endurance time:
1. Hover 75 minutes with no load (550 meters above sea level, no wind)
2. Hover 52 minutes with 800g payload (550 meters above sea level, no wind)
3. Hover 28 minutes with 800g payload (4000 meters above sea level, 3rd wind)
Maximum rotation angular velocity: 120°/s
Maximum wind speed: ＜10m/s
Working environment temperature: -30℃ to +70℃
Flight altitude: ≥4000 meters
Flight humidity: <70%
Flight modes: manual, fixed altitude, fixed point, sports, attitude.
Satellite positioning module: GPS/GLONASS or BDSS/GLONASS dual-mode GPS Beidou satellite
Hovering Accuracy: Vertical: ±2.5 m (when GPS positioning works normally) Horizontal: ±2.5 m (when GPS positioning works normally)
Battery: 1* 6S 14500mah
Body material: carbon fiber material, light in weight, high in strength, and corrosion-resistant.
Control method: APP ground station/remote control (you can plan flight routes,
It will perform tasks according to the route, and when the power is insufficient, it will return to the flight with low power when performing tasks according to the planned route)
