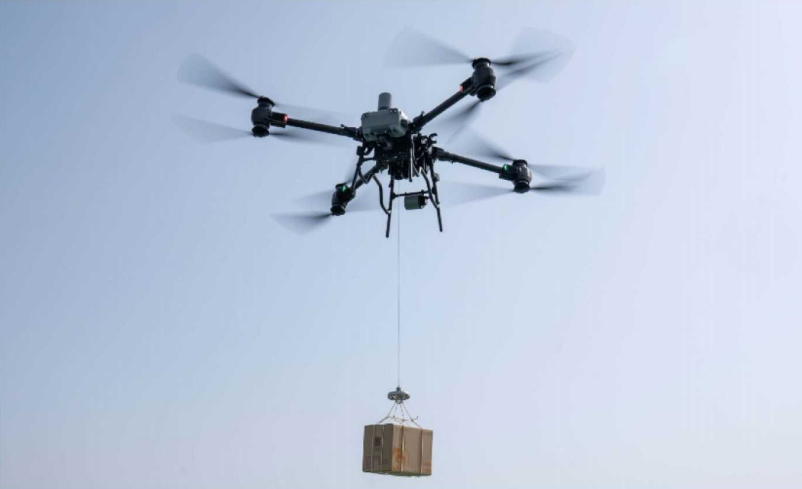

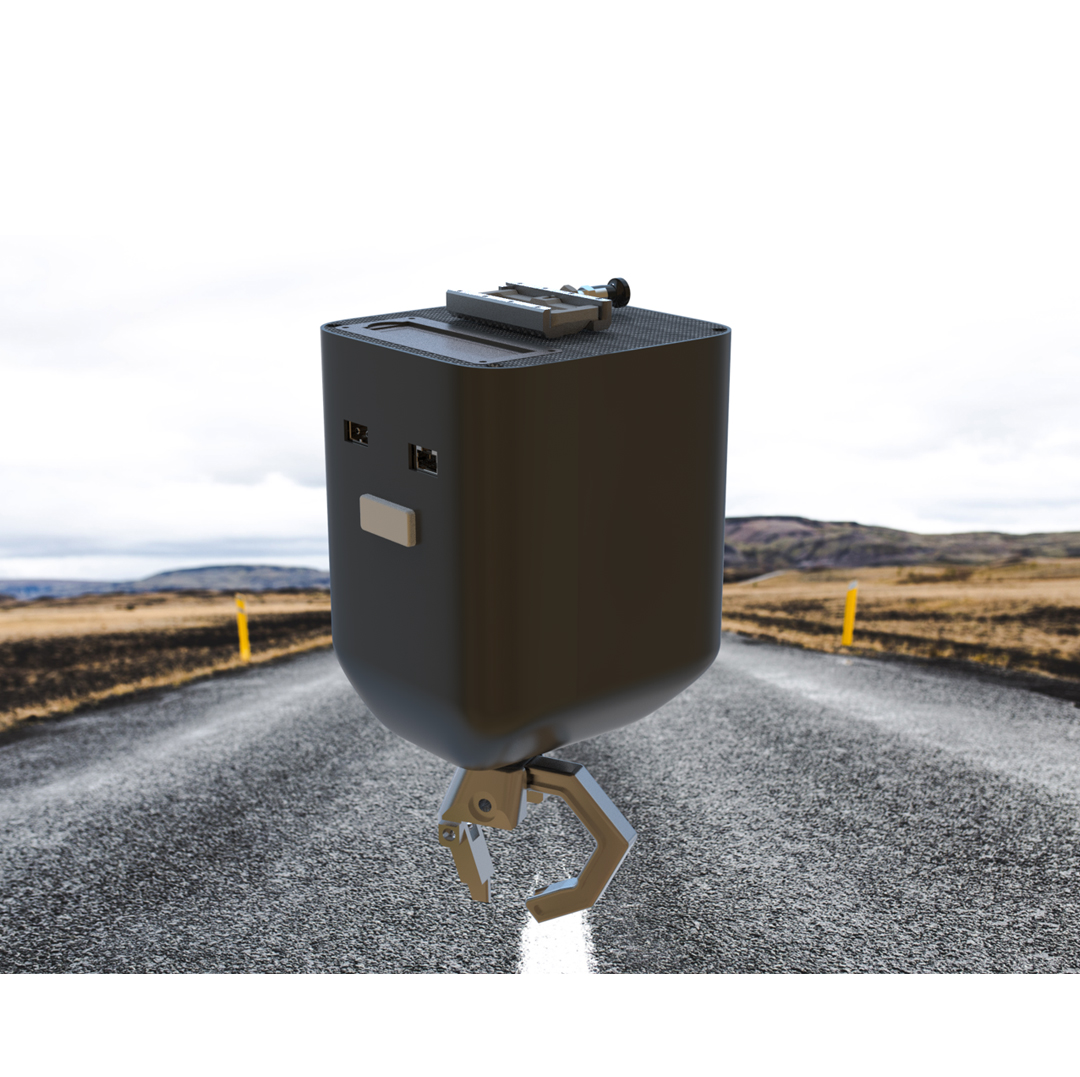

FD15 drone delivery drop system is a suspension system for multi-platform drone logistics and transportation. It weighs only 980g and has a maximum load of 15kg. It automatically decouples when the dropped goods hit the ground. the rope can be fused with one click In an emergency.
FD15 drone delivery drop system is compatible with any industrial drone platform. It can be adapted to DJI M300, M350 and C30 based on the PSDK protocol. It can also be used independently with an independent remote control, or integrated into a third-party remote control or drone. control.
Specifications:
Dimensions: 130×120×170mm (length×width×height)
Weight: 980g
Power supply voltage: 6S-7S
1. Under the 24V power supply voltage, when carrying 15Kg of goods, the maximum current is 4.5A at the moment of rising, and the maximum instantaneous power consumption is about 108W; when carrying 1.5Kg of goods, the maximum current is 0.65A at the moment of rising, and the maximum instantaneous power consumption is about 15.6W. .
2. Under the 24V power supply voltage, when carrying 15Kg of cargo, the power consumption in the hovering state is about 16W; when carrying 1.5Kg of cargo, the power consumption in the hovering state is about 2.55W; when there is no cargo, the standby power consumption is only about 2.4 W.
Communication: sbus, PPM, PWM
Retractable mechanism system
(1) After the winding reaches the top, it will automatically stop winding and has upper limit self-locking; when there is no power or control signal input, it does not have upper limit self-locking1.
(2) Only has pure manual operation mode
(3) Maximum effective load-bearing capacity: 15Kg
(4) One-click automatic disconnection function
(5) Suspender, maximum descending speed: 0.6m/s, maximum ascending speed: 0.6m/s
(6) Suspension, factory default descending speed: 0.3m/s, maximum ascending speed: 0.3m/s
Note: After a power outage, the system will lose its locking function, and the cable will drop due to the weight of the cargo; if the system power supply voltage is lower than 18V, the self-locking performance will become worse, and there is a risk of the cable falling.
Function
(1) In case of emergency, the rope can be cut off with one click in 3 seconds.
(2) When the goods touch the ground, the goods will automatically decouple 1.
(3) When the hook touches the ground, the hanger automatically stops releasing the rope 2.
(4) Slide rail buckle design for quick installation.
(5) With light warning judgment, the green light flashes in the range of 1-10Kg, the yellow light flashes in the 10-15Kg range, and the red light flashes in the range of more than 15Kg
Expansion and Versatility
FD15 drone delivery drop system is compatible with multiple platforms and can be used on DJI M300, M350 and C30 based on the DJI PSDK protocol; it can also be equipped with an independent remote control and used with independent power supply; it can also be used through the reserved PWM or network port communications, integrated into third-party platforms.
