Agriculture drones sprayer catalogue

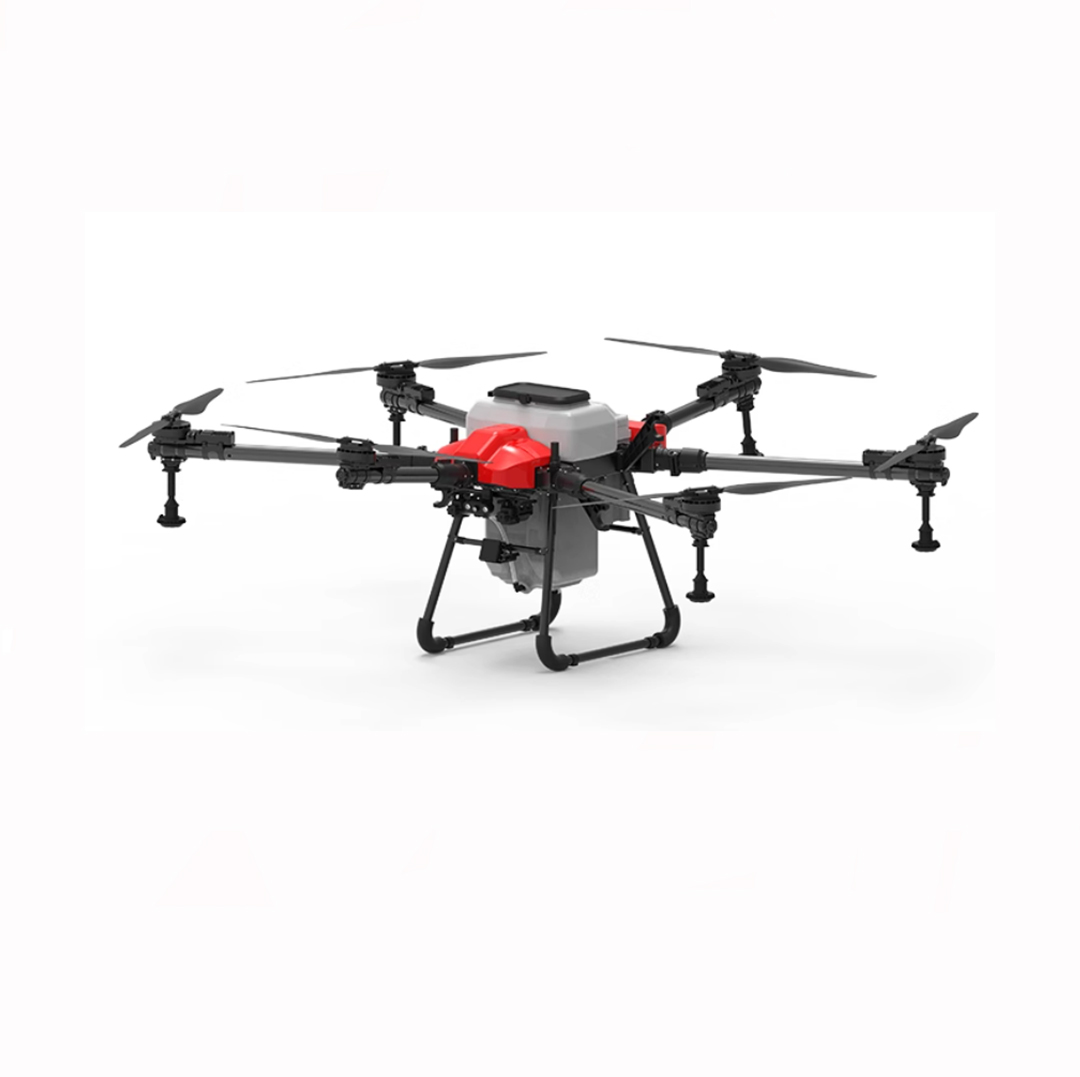

FD-X6R 40L Agriculture drone

Product description: FlyDragon FD-X6R 40L Agriculture drone is specially designed for crops spraying. The effective capacity of the drone is 40L. It adopts a quick-release medicine box and battery, compact body, light in
INQUIRY

FlyDragon FD-X6R 40L Agriculture drone is specially designed for crops spraying. The effective capacity of the drone is 40L. It adopts a quick-release medicine box and battery, compact body, light in weight and convenient to fold. terrain following radar and FPV cameras are the first choice for entry-level plant protection drones. effective working efficiency up to 8 acres.

Specifications

Empty weight: (excluding battery) 30.7kg
Maximum take-off weight: 85.7kg
Wheelbase: 2320mm
Expanded size: 2038*2188*807mm
Folding size: 1248*826*934mm
No-load hovering time: 30min（1*18S 30000mah Battery）
Full load hover time: 7min（1*18S 30000mah Battery）
Medicine box capacity: 40L
Water pump parameters: Voltage: 12-18S Power: 30W Maximum flow: 8L/min*2
Nozzle parameters: Voltage: 12-18S Power: 500W Atomization particle size: 60-90μm
Effective spray width: 6-10m
Flight speed:1-10m/s
motor: hobbywing X11max
battery:18S 30000mAh (13.3kg)
propeller: 48inch(1234mm)
