  • COFDM Digital Video Transmitter wireless HD video transmitter for UAV
COFDM Digital Video Transmitter wireless HD video transmitter for UAV

COFDM Digital Video Transmitter wireless HD video transmitter for UAV

COFDM Digital Video Transmitter wireless HD video transmitter for UAV

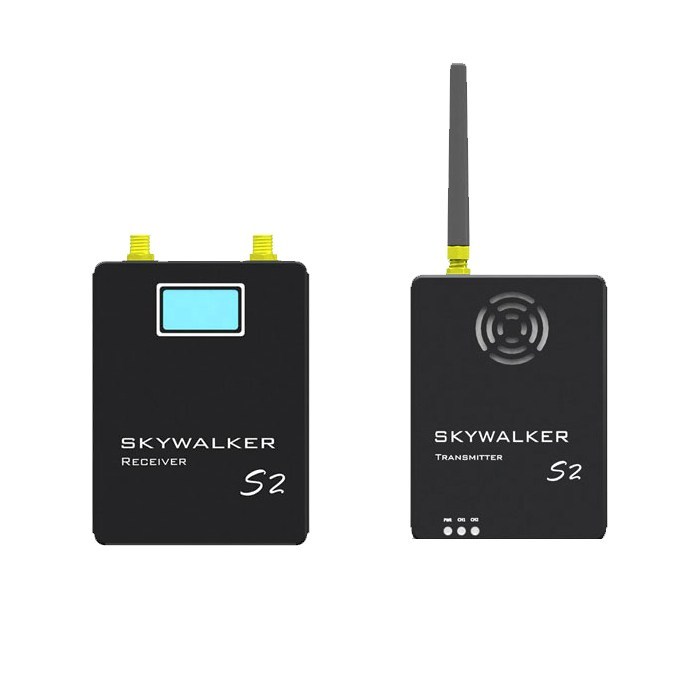

COFDM Digital Video Transmitter is a customized wireless video transmission product which designed for the aerial photography need of drones. With best in class picture quality, low latency transmission, the biggest range can reach 50km that allows you to monitor the entire scene.

S2 wireless HD transmission is adopted the newest technology H.265/HEVC code and achieve wireless video transmission beyond your imagination. Supporting encryption funtion is more secure. The transmitter is compatible with more video from camera and supports multiple simultaneous transmission by TDMA.
Adopted COFDM modulation technology, large channel capacity, supports FHD real time video transmission, it has good performance on anti-fading, wich affected by multi-path transmission, it is suitable to transmit real time video under the high speed motion.
Transmitter support HDMI/CVBS input at the same time, and multiple simultaneous 1080P HD video tranmit. Network stream supports TCP/UDP/RTSP.
Receiver support picture in picture display, one click switch, easy to use and support simultaneously transmit HDMI and IP. IP output supports mainstream protocol.
S2 wireless HD video tranmission system have been deeply optimized video decode, and over low latency transmission effect. The transmission distance reaches 10-50KM, widely applied in mapping, inspection etc.
S2 has diversified interface to output and input video.The transmitter supports HDMI/IP/CVBS, which user content with diversified mounting demand. The receiver has HDMI and IP interface, supports simultaneously output by HDMI and IP. In addition, the receiver has US interface. User can insert USB, which record HD real time video, mutiple backup. and it has OLED diplay screen on the receiver,clearly indicate the strength of current signal and video recording information. All operations need only be done with one button.


HD VIDEO TRANSMISSION

Frequency 300~900MHz(Customizable)
Interface 50Ω SMA
Interface COFDM 2K
Modulation Format QPSK,16QAM
Video Bit Rate 3~12Mbps
Video Bit Rate 8MHz
Latency About 250ms
Compressed Format H.265
Resolution 1080P @60(Downward Compatible)
Voltage DC9~28V
Audio Input Interface HDMI(type A)
Power Consumption ≤10W
Transmission Range Distance 5km   @ Output power >500mW
10km @ Output power >1W
Weight About 98g
About 98g 82*62*24mm

HD VIDEO RECEIVER

Frequency 300~900MHz(Customizable)
Interface 50Ω SMA
Voltage DC9~18V
Video Output Interface HDMI(type A)
Reception Sensitivity -96dBm
Power Consumption ≤3.5W
Weight 约116g
Dimension 87*63*24mm
