Payload SDK Features - Camera/Gimbal Interfaces

Camera and Gimbal Interface

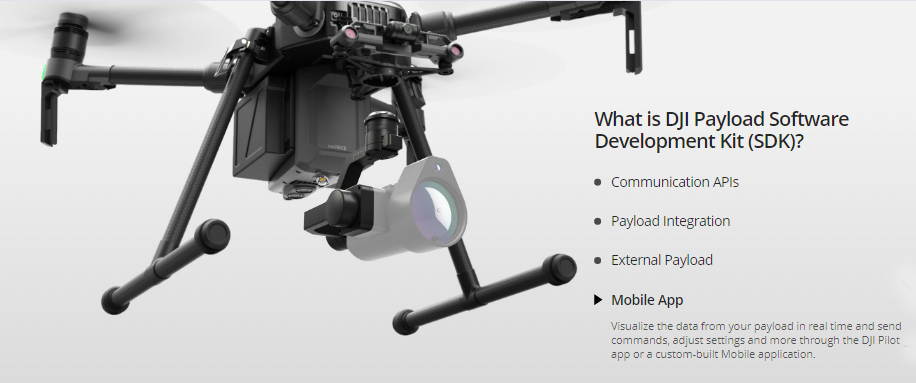

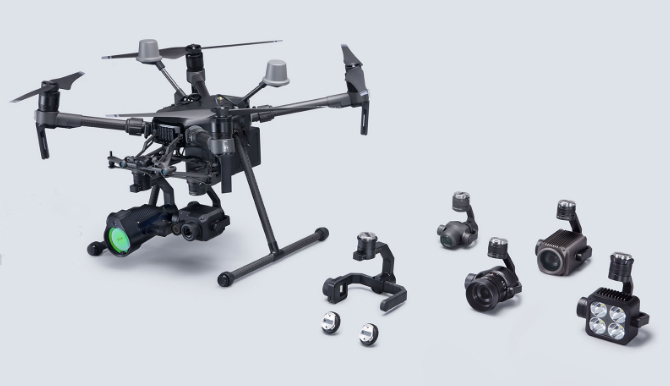

Payload SDK provides support for camera and gimbal payloads that will allow your payload to function seamlessly with DJI Mobile SDK and DJI Pilot. DJI Pilot provides UI for camera and gimbal payloads, and Mobile SDK provides the corresponding interface for camera and gimbal payloads. This support is intended to be used in the following manner:

Payload SDK provides interfaces that are interpreted by the aircraft/MSDK in the same manner as native DJI payloads.

It is the developer's responsibility to implement these features as defined by the interface.
For example, the PSDK provides a Zoom API. This means that this function will be called when a MSDK application calls the Zoom API on the mobile side or zoom button press on DJI Pilot. It is up to you, as a developer, to implement the zoom functionality for your own payload such that when the zoom function is invoked, your payload physically executes the zoom.

Camera Interface Support

Interface               Description

Camera working modes          Capture mode and recording mode
Capture modes                      Single capture, continuous capture, and interval capture
Recording modes                  Start recording and stop recording
SD function Obtain                SD card status and format SD card
Metering function                  Set metering modes (center-weighted metering, average metering, spot metering) and set                                               spot metering areas
Focus function                      Set the autofocus focus area
Zoom function                      Fixed speed zoom and position zoom

Gimbal Interface Support

Interface            Description

Gimbal control                           Set the gimbal's angular velocity, angle and joint angle
Gimbal return to center              Gimbal return to center to keep the same direction with the aircraft nose
Gimbal mode settings                Support free mode,FPV mode and follow mode
Gimnal calibration                     Trigger gimbal calibration and get the progress and results of gimbal calibration

Gimbal attitude acquisition         Obtain the current gimbal attitude and rotate limit

FD33T 33X Zoom Gimbal Camera for UAV Inspection solution

drone camera gimbal 33x starlight gimbal for uav drone

FD33T gimbal camera for drone features a 33x optical zoom lens. It powered by 1/2.8″ SONY CMOS module, with 0.001lux，F1.5-4.0 starlight level min illumination, 2 million effective pixels, fast auto-focus speed, 1080p HD image quality, combined with 33x advanced optical zoom technology, designed for UAV aerial photography, UAV inspection, UAV rescue, and UAV searching, At the same time, All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly.The gimbal can be controlled in three directions: YAW, ROLL and PITCH, We use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at 36 times optical zoom.
