Drone for police to find illegal poppy cultivation

On April 26, the Chinese police used drones to seize 6 cases of illegal poppy cultivation within half a day, eradicating a total of 700 poppies.

According to a person in charge of the city’s public security bureau, some villagers in the city believed that poppies could cure diseases or prevent chicken plague, so they used various hidden places to steal poppies. The rural area is vast and the terrain is complex, making manual inspections difficult. Spring is the peak season for poppy and other drug-producing plants to bloom and bear fruit, and it is also the best time for identification. In the morning, the police from the Anti-drug Brigade of the Bureau took a drone to carry out aerial anti-drug aerial photography inspection activities. When the drone flew over Shishan Jiang Village, a poppy plant appeared on the screen.

The police rushed to the scene immediately and saw that the 10 square meter field was covered with poppies. A total of 57 plants were counted. The drone continued to inspect. When it found a field without rapeseed, the "electronic eye" scanned it and found that there were many plants with coquettish flowers in the middle of the lush rape field. Following the direction of the drone and the positioning of the monitor, the police quickly found these poppies. The owner of the vegetable plot, Hang Moufa, confessed to his illegal cultivation of poppies. A total of 157 poppies were checked on the spot. All these poppy plants were forcibly eradicated. The police also conducted anti-drug propaganda and education for those who violated the law. At present, all six illegal acts have received corresponding administrative penalties.

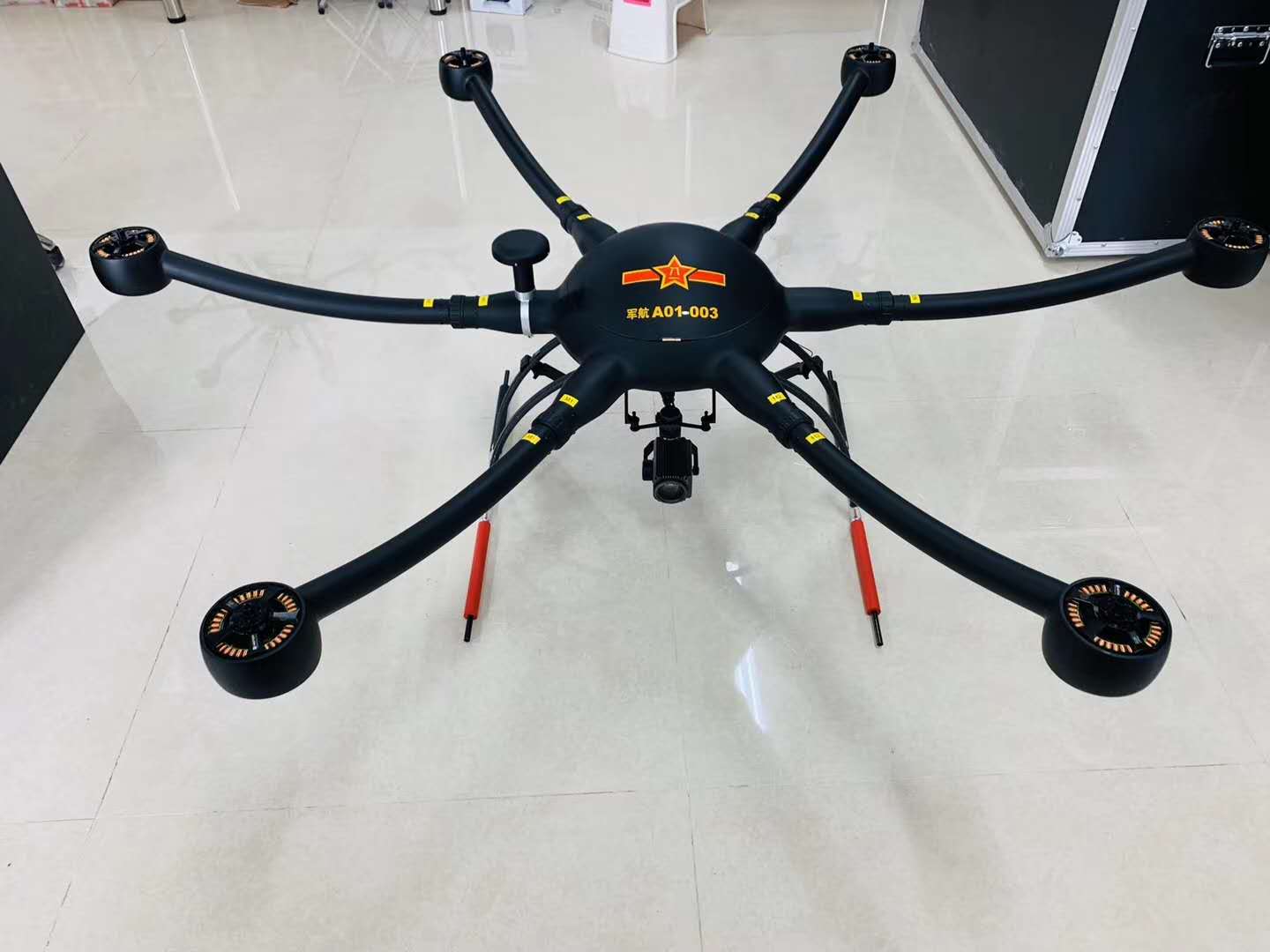

Drone for police

Specification

Aircraft Type: Hexacopter
Wheelbase: 1600mm
Airframe Material: Carbon Fiber And Composite Materials
Weight (Without Batteries Or Payload): 6.8kg
Max. Take-Off Weight:21-23kg
Max. Payload: 6kg
Max. Climb Speed: 4m/s
Cruise Speed: 10m/s
Max. Flying Speed: 15m/s
Flight Time (Without Load):  81min
Max. Control Radius: 20km
Max. Altitude AMSL: 4000m
Hovering Accuracy:Vertical ±1m, Horizontal±1.5m
Max. Wind Resistance： Level 6
Operation Temperature： -20～60℃
IP Rating：IP56

30X zoom IR camera for Police inspection drone

30x 2 million optical zoom movement, 640*480 pixel infrared
camera, two-axis stabilization gimbal, ±0.008° control stabilization accuracy,
leading the industry. Maximum focal length and fast

It can still maintain the stability of the picture during
flight movement. The ground station supports pointing zoom, one-click
centering, mouse or touch screen operation pod, convenient operation, modular
design, strong scalability, open SDK target intelligent tracking, and easier
tracking of moving targets Convenience.





Dual optical zoom pod

Working voltage: 12V-25V

Power: 8.4W

Weight: 750g

Memory card type: Micro SD card (single card)

Dimensions (length, width and height): 105*105*65mm

Interface type: network port

Control display mode: Windows system PC;

Real-time transmission resolution

Thermal imaging: 640*480 Visible light: 720P, 1080P

Working temperature: -10°~45°

Storage temperature: -20°~70°

Angle jitter: ±0.008°

Installation method: detachable

Controllable rotation range

Pitch: +70° to -90°; heading: 360° continuous

Structure design scope

Pitch: +70° to -90°; heading: 360° continuous

Maximum control speed

Pitch: 120º/s; heading 180º/s

Intelligent target tracking: support

Camera parameters: visible light

Sensor: CMOS: 1/2.8″; total pixels 2.3 million

Lens: 30x optical zoom lens F: 4.7~141mm Minimum shooting
distance: 1m~1.5m (near focus ~ far focus) Field of view (horizontal): 60~2.3°

Image storage format: JPEG

Video storage format: MP4

Working mode: video; take photo;

Fog: electronic fog

Exposure mode: automatic exposure

Resolution: 1920*1080

2D noise reduction: support (automatically open)

3D noise reduction: support (automatically open)

Electronic shutter: 1/3~1/30000 second

Exposure: automatic mode;

Information Video Overlay (OSD): Support

Pointing zoom: support

Pointing zoom range: 1~30x optical 4x electronic zoom

One-click zoom to single image: support



To Thermal Imaging

Detector type: uncooled infrared microbolometer

Resolution: 640*480

Sensitivity: ≤60mk@300k

Frame rate: 50Hz

Lens: 25mm fixed focal length

F number: 1.0

Zoom: 8 times electronic zoom
