[According to the defenseworld website December 12, 2021] The small multi-rotor UAV platform ZCQM developed by Turkish Zyrone Dynamics will be sold to India. This is the first export of the UAV platform. All 100 UAV systems are expected The delivery will be completed next year.
The UAV platform can hover for 80 minutes at an altitude of 1.2 kilometers, and has completed flight certification under conditions such as deserts, sandstorms, and extreme cold, and meets international standards. Zyrone Dynamics will also conduct flight demonstrations in India in March 2022, and hopes to export drones to other countries through India.

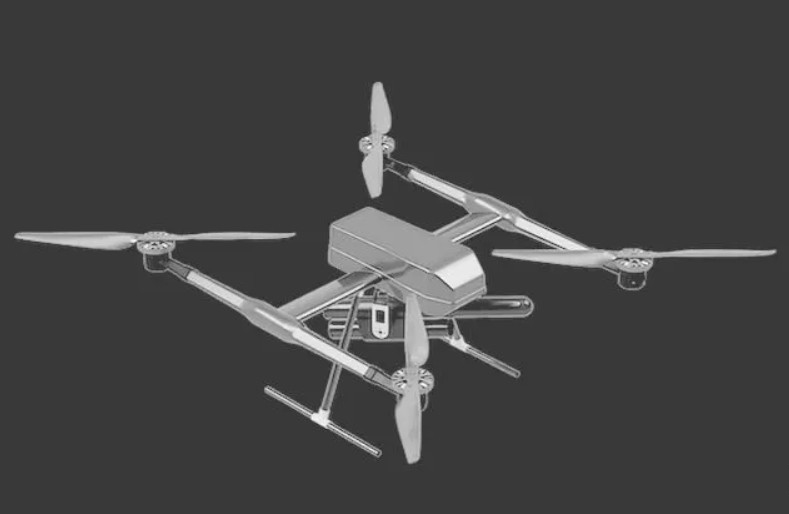

FlyDragon FDG815 long endurance small quadcopter drone is a small size aerial platform for mapping, surveillance and inspection. Featuring 90 minutes of flight time, IP66 rating folding frame, and multiple failsafe, Its compact folding airframe enables easy operation and flexible maneuvering. – Forged from a combination of carbon fiber, PCB and CNC, allowing flight mission under a wide temperature range of -10℃-55℃. – With a built-in 14S 14000mAh high voltage li-ion battery, the flight time boosts up to 90 minutes with no payload, and it still reaches 45minutes with 2.5kg payload.
– Built-in antenna shields from dust and moist. Color: Black and White Material: Carbon Fiber, CNC, PCB RTF version
FDG815 long endurance small quadcopter drone
Quadcopter drone 90 minutes endurance
– Self-locking propellers .
– Under circumstances when Drone is in low voltage status or loss of signal, Return to Launch failsafe will be automatically triggered to save the drone.
– Plan the flight path that can be saved for future mission on either Herelink 5.5″ inch touch screen or on MissionPlanner/PC after linking herelink with PC through WiFi / Bluetooth/USB, drone flying becomes programmable and as simple as anyone can master. Alternatively, Herelink also serves as a streaming media server that delivers video and data (WAN) among team members on their devices like an ipad, mobile phone or PC, allowing a simultaneous team participation in the mission.
Specification Version: Quadcopter Battery-powered Version
Control Range: 20km
Diagonal Wheelbase: 815mm
Unfolded Dimensions: 670mm*650mm*200mm (excluding propellers/landing gears)
Folded Dimensions: 440mm*210mm*200mm(excluding propellers/landing gears)
Empty Weight: 5.4kg (including battery)
Battery Weight: 2.8kg
Max Take-off Weight: 8kg
Flight Time: 90min (no payload) 68min (800g payload) 45min (2500g payload)
Max Speed: 30m/s Max Lifting Speed: 4m/s
Max Descent Speed: 3m/s
Max Angle of Pitch: 25°
Wind Resistance: 14m/s
Service Ceiling: 6000m
Propeller: 22*8 inch
Working Voltage: 50.4V
Working Temperature: -10℃-55℃
Carrying Case: 68cm*45cm*35cm
Your Purchase Includes
RTF Package 1x ARF Combo
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x Herelink 2.4GHz Long Range HD Video Transmission System
1x 14S 14000mAh Li-ion Battery
2x (pair) 22 inch Carbon Fiber Propeller
1x Battery Charger
1x Carrying Case.
