Greek Navy completes flight test of CAMCOPTER S-100 UAV

[According to the defenseworld website August 2, 2021] The Greek Navy completed the flight test of Schiebel’s CAMCOPTER S-100 UAV. The test flight was carried out on the Airy-class frigate Aigaion (F-460) in the Mediterranean area west of Crete. It focused on demonstrating the range, endurance, speed and sea surveillance/detection platform of the CAMCOPTER S-100 UAV. performance.

The test flight will also include all-day take-off and landing tests of the CAMCOPTER S-100 UAV, as well as the implementation of maritime traffic surveillance/coast monitoring in collaboration with other Greek naval vessels.

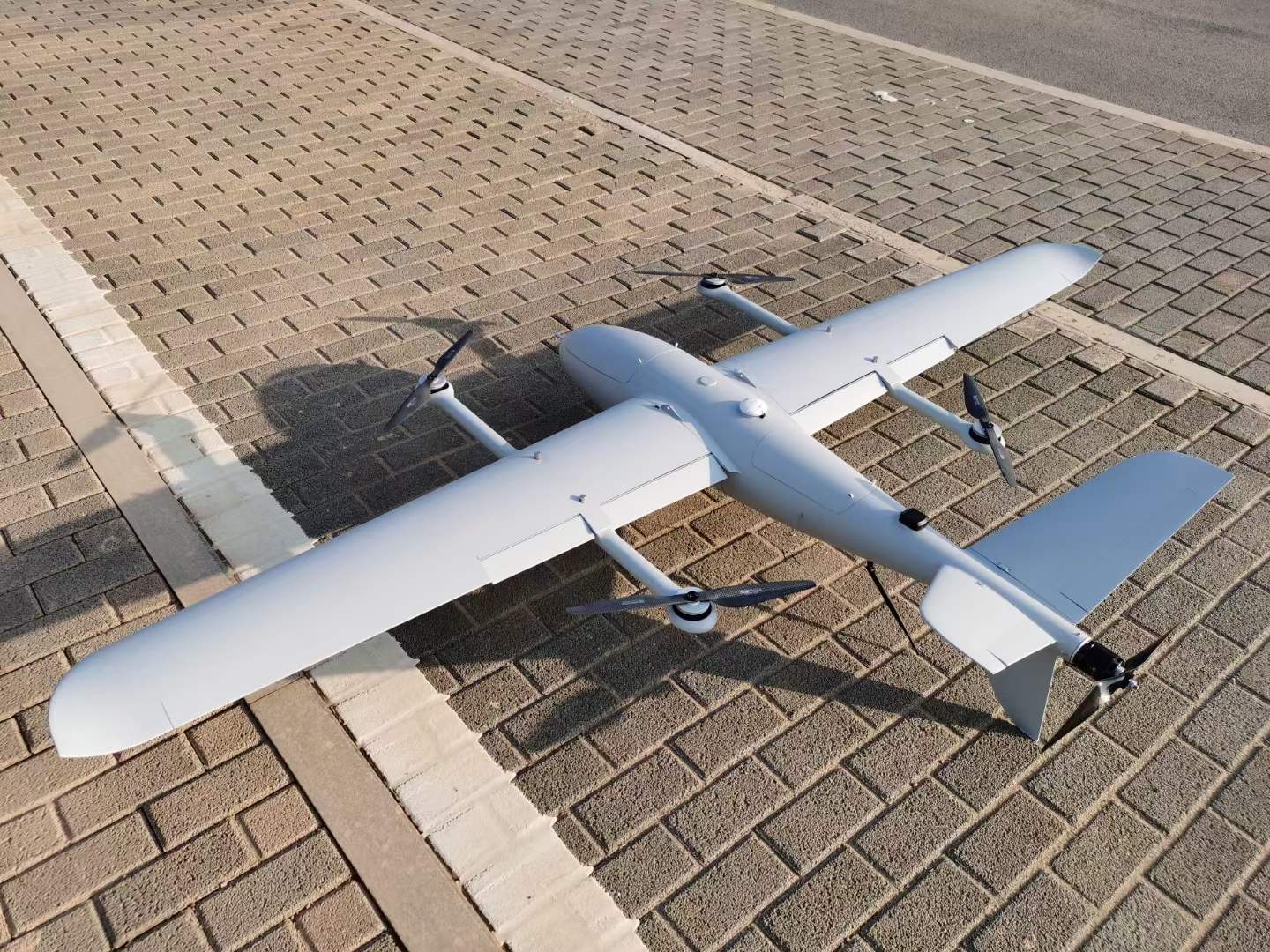

FlyDragon FDG25 fixed -wing vtol for surveillance/coast monitoring

long endurance drone 3 hours VTOL V tail for monitoring and surveillance

FlyDragon FDG-25 long endurance drone with vertical take-off and landing fixed wing, wingspan 2.5 meters,it iss electric version . This model combines the characteristics of long-endurance, high-speed and long-distance of fixed-wing UAVs and the vertical take-off and landing of rotor-wing drones. It does not require runway but only small space for take-off and landing, and can be operated smoothly on ship deck, narrow airspace, mountain, complex terrain and densely populated areas such as hills, jungles

Feature:

Easy to assemble and operate Vertical take-off and landing, without limitation of space Resistance to harsh weather conditions Diesel-electric version and electric version optional All carbon fiber composite material, industry standard architecture Compatible with PC station, suitable for open source of autopilot system.

1. Body material: carbon fiber, glass fiber, Kevlar, pvc interlayer, etc.
2. Body length: 1.26m
3. Wingspan: 2.5m
4. Landing gear height: 19.5cm
5. Landing gear installation position: below the rotor rod
6. Task compartment size: 260mm*172mm*90mm
7. Battery compartment size: 260mm*150mm*85mm (can hold 2*5300mah and 1*32000mah at the same time)
8. Position of mission compartment: directly below the center of gravity of the aircraft
9. Structure weight: about 3.2kg
10. Maximum take-off weight: less than 13kg
11. Maximum payload: 2kg (standard load: 1-1.5kg)
12. Endurance time: 170min/1.5kg,  210mim/1.2kg
13. Maximum control distance: manual control by remote control/1km, ground station/standard 30km
14. Standard cruising speed: 65km/h (about 18m/s)
15. Maximum cruising speed: 108km/h (30m/s)
16. Stall speed: 16m/s
17. Minimum circling radius: 150m
18. Maximum level flight limit: 4000m above sea level
19. Wind resistance of fixed-wing mode: no less than 7 wind (17.1m/s)
20. Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)
21. Operating environment: -20℃~45℃; can fly in light rain
22. Power battery: 2*5300mah (vertical take-off and landing) 2*25000mah (fixed wing cruise)
23. Rotor emergency operation time: not less than 6.5min
24. Take-off and landing method: vertical take-off and landing
25. Vertical power blade size: 16 inches (recommended)
26. Fixed wing tail thruster blade: 14~16 inches (recommended)

Recommended Set-up:

4 x T-motor MN505S KV260
4 x T-motor 6S 60A ESC
2 x P16*5.4 Propeller CW&CCW
1 x T-motor AT115A  ESC
1 x T-motor AT4130 KV230
1 x APC 17″ Propeller CW
4 x GDW296X servo
1 x PX4 Air Speedometer
1 x Power Module For Pixhawk 2.1
1 x Pixhawk 2.1 Standard Set with Here 2 GNSS
1 x Herelink
2 x 6S 25000mAh Lipo battery

NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE
