Fire Fighting Drone For Fire Department Of Hohhot City


On March 24, the two-day "Strengthening the Northern Xinjiang-2021" cross-regional actual combat drill for earthquake rescue in the Inner Mongolia Autonomous Region ended successfully. In this exercise, the fire fighting drone of the Fire Rescue Detachment of Hohhot City "stunning" appeared!

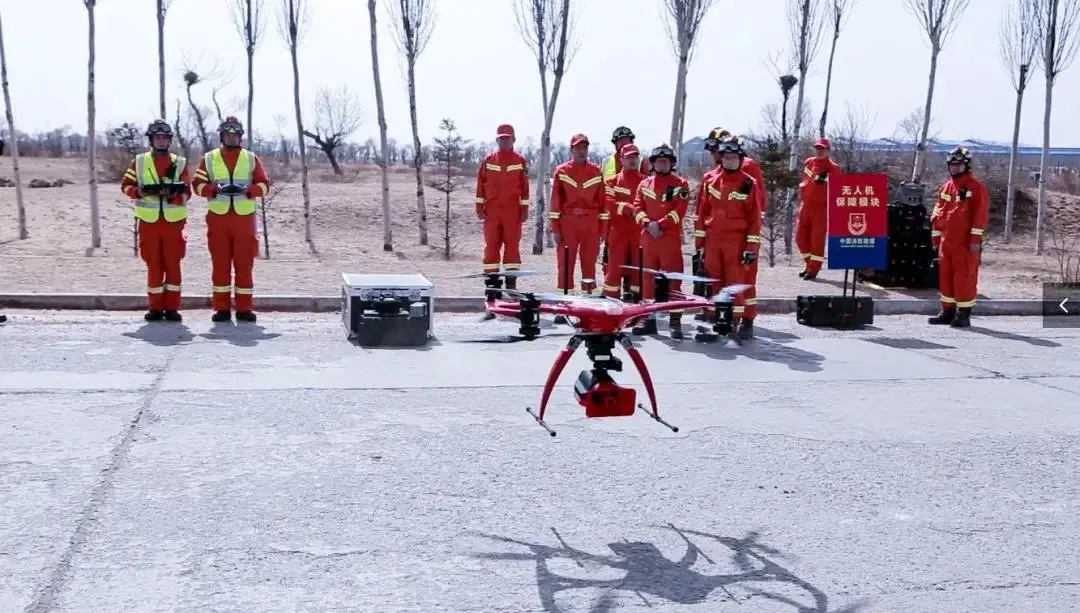

In this exercise, the UAV Brigade of the Fire Rescue Detachment of Hohhot dispatched 4 firefighting UAVs and 11 commanders, carrying 17 pieces of flight mounted equipment in four modules including reconnaissance, medical treatment, rescue, and transportation, to participate in the exercise and execute the disaster scene. Tasks such as investigation, image collection, political agitation, transportation of rescue equipment, and release of security materials.

In this exercise, the UAV Brigade of the Fire Rescue Detachment of Hohhot dispatched 4 firefighting UAVs and 11 commanders, carrying 17 pieces of flight mounted equipment in four modules including reconnaissance, medical treatment, rescue, and transportation, to participate in the exercise and execute the disaster scene. Tasks such as investigation, image collection, political agitation, transportation of rescue equipment, and release of security materials.

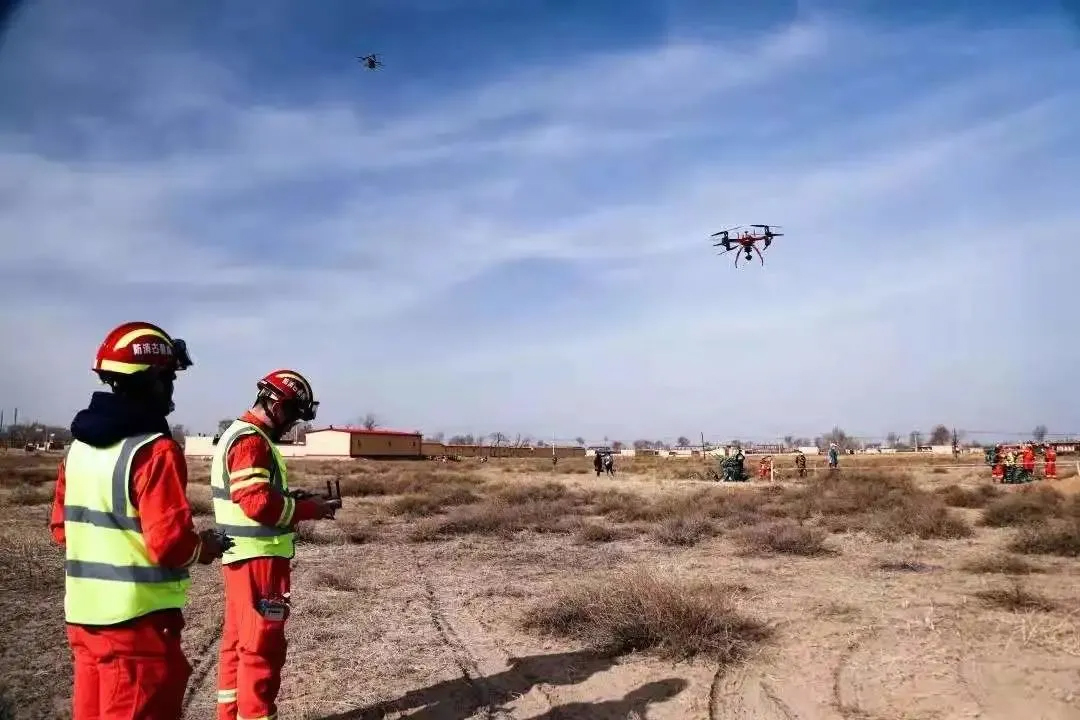

After the UAV brigade arrived at the scene, each flight team quickly expanded according to the exercise subjects, and immediately divided the take-off and landing areas that met the take-off conditions, and debugged the UAVs and mounted modules.

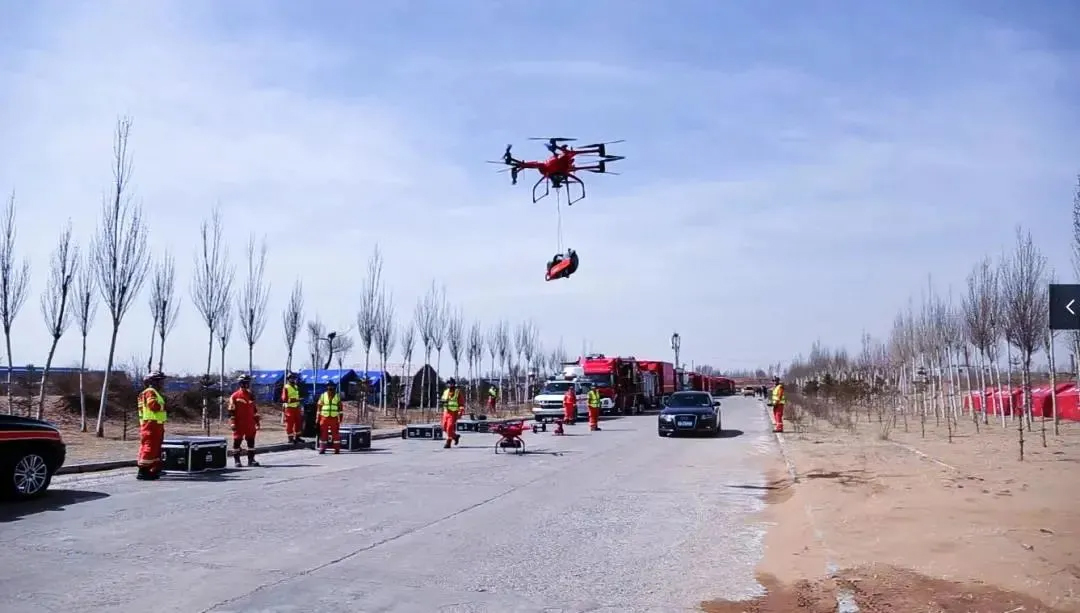

During the night rescue process, the fire-fighting drone provides lighting, thermal imaging, etc. for the rescue operation area of the commanders and fighters. Its mobile and flexible characteristics provide a strong guarantee for search and rescue work under complex conditions. During the exercise, the fire-fighting drones accumulated more than 10 hours of flying time, putting medical supplies, drinking water, food for individual soldiers, and other equipment such as air respirators, toothless saws, and hydraulic demolition tools.

This exercise is the first time that the Fire Rescue Detachment of Hohhot City has used firefighting drones in earthquake drills. It has played an important role in expanding the application fields of firefighting drones and further improving the actual combat level of fire rescue teams.

FlyDragon FD-50 hybrid drone for Rescue

FlyDragon FD-50 heavy lift drone 50KGS payload 1 hour endurance hybrid drone,  This heavy-lift drone is our largest and most capable delivery UAV. Capable of a carrying up to 50KGS and flying up to 60 minutes.

Specification:

Standard take-off weight: MAX 230kg (Including 50KG + 30KG fuel)
Wheelbase: 3530mm
Expanded size: 5130 * 4660 * 1350
Excluding the arm size: 1500 * 1380 * 1350
Backup battery: 24S 22000MAH
Hovering time*: No load: 130 minutes (additional fuel tank) Load: 60 minutes
Maximum climbing speed: 2m/s.
Flight speed: 1-8m/s.
Maximum altitude: less than 1000m
Recommended working temperature: -20 to 40°C
Fuel tank capacity: 20L * 2
Flight control system: A3
Working frequency: 2.400-2.483 GHz
Remote control model: H12
Working frequency: 2.400-2.483 GHz
Maximum transmission distance: 3km(Extra range requires additional range extender)
EIRP: @ 2.4GHz: FCC 20 dbm @ 2.4GHz: CE 16 dbm
Hybrid power system Model: FYD23K * 2 sets
Rated voltage: MIX 88.8V MAX 100.8V 24S
Power: continuous power: 23KW * 2
Working fuel consumption: 17.5L * 2 /hour
Fuel ratio: 0-5 hours 25:1; after 5 hours 50:1 (95# gasoline, FD grade 2T engine oil) Working temperature: -20~45 degrees Celsius
Startup mode: one-key auto start

FlyDragon throwing fire extinguisher For Fire Fighting

FlyDragon throwing fire extinguisher ball  is an activation or trigger strip is embedded into the ball’s outer casing, which securely holds the dry fire extinguishing agent inside. When the activator or trigger is exposed to flames for more than a few seconds, the casing will burst open and disperse a cloud of chemical powder in the immediate vicinity. It releases a blanket of CO2 gas that keeps air from the fire. A dry-powder extinguisher (2) contains sodium bicarbonate, which smothers a fire. A soda-acid extinguisher (3) contains sodium carbonate and a flask of acid. If the flask is broken, a chemical reaction releases a stream of frothy water.

The traditional fire fighting method is sometimes restraint by some factors, like rough terrains or other unfavorable site conditions that are making it impossible for fire trucks or too dangerous for fire fighters to approach the fire scene, and as a result, people die and buildings get burnt down. Fortunately, FLY-MHD Fire Extinguisher Ball Release and Drop Device For Fire Fighting can solve that problem. It is originally designed for fire fighting, whether it’s forest fire, or ones that happen in chemical plants, a cruising large ship, or residential areas, as long as it can reach the destination, it can be put into use. Later on, derived from its former use, it is applied to more other fields like military application, medical supplies transport, emergency food delivery or it can even throw life jackets, LED lights to drowning victims on condition that the supplies that are going to be released are packed in round-shape containers. It is made of 7075 aviation aluminum alloy and carbon fiber, which gives the main body a firm supporting structure while remains light. It has two servos that enable the device to have two release mode: single and double release. Its fast reload design allows people to take an instant and effective measure in fire fighting, thus reducing casualties and property loss.

Features:

-Light and durable
-Two servos: Single/double release
-Fast reload design
-6-ball(Dual)/3 balls(Single) loading capacity

Applications:
Fire fighting: forest fire, military applications, fire control in chemical plants, large ships, or residential areas, etc.
Other fields: military application, medical supplies transport, emergency food delivery or marine delivery(packed in round-shape containers),etc.

Specifications(Dual):
Frame weight: 1.7kg(no payload)
Size: 470mm x 317mm x 291mm
Material: 7075 Aviation aluminum alloy, Carbon fiber
Power supply mode: On-board DC-DC
Working voltage: 24 V
Signal input: PWM input
Default control range: 800m(can be expanded by better RC)
Load capacity: 6*fire extinguisher balls
Suit for Ball size and weight: 150mm(1.3kg)
Release mode: Single/double release
Suggested release height: 5-50m
Response time:3-5s
Fire extinguishing range: 3 m2 / ball(just for reference)
Working Temperature: -10 ℃~ +70℃

Specifications(Single):
Frame weight: 1.2kg(no payload)
Size: 490mm x 210mm x 310mm
Material: 7075 Aviation aluminum alloy, Carbon fiber
Power supply mode: On-board DC-DC
Working voltage: 24 V
Signal input: PWM input
Default control range: 800m(can be expanded by better RC)
Load capacity: 3*fire extinguisher balls
Suit for Ball size and weight: 150mm(1.3kg)
Release mode: Single/double release
Suggested release height: 5-50m
Response time:3-5s
Fire extinguishing range: 3 m2 / ball(just for reference)
Working Temperature: -10 ℃~ +70℃

NOTE: THE PRICE IS JUST THE DROP SYSTEM, WITHOUT THE EXTINGUISHER BALL , AND THE  EXTINGUISHER BALL  NEED SPECIAL DELIVERY, SO WE SUGGEST YOU BUT THE EXTINGUISHER BALL  AT YOUR LOCAL MARKET!
