News

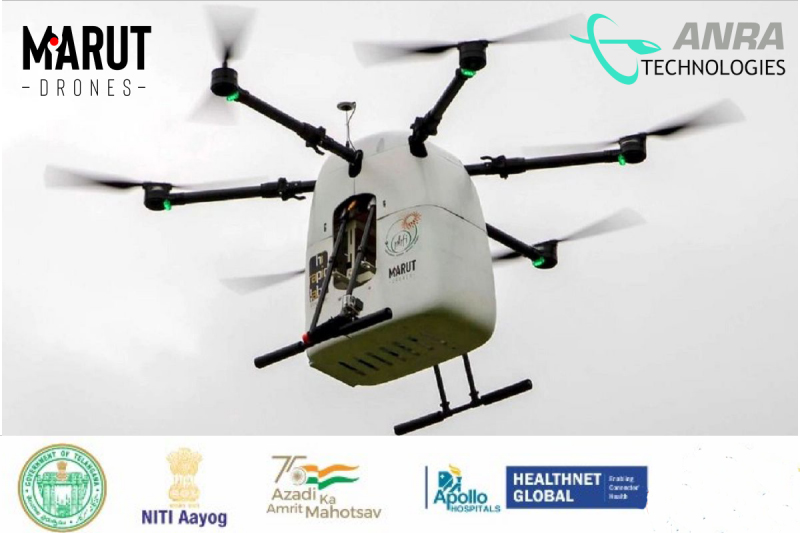

ANRA drone delivers medicines by air in India

ANRA Technologies has announced its participation in the "Medical from the Sky" project led by the Emerging Technology Department of the Ministry of Information Technology, Electronics and Communications (ITE&C) of the Government of India, which uses drones to deliver emergency medical supplies.

The project integrates drone technology to transport drugs to hard-to-reach rural areas over long distances with minimal road infrastructure. With the support of Jyotiraditya Scindia, Minister of the Civil Aviation Union of India, the Telangana government has initiated trials to use this innovative technology to advance healthcare.

The COVID-19 pandemic has brought about long-term health inequalities and has inspired people to think about how to provide high-quality healthcare for all, even in areas off the beaten track. With the delivery of drones becoming a potential solution, ANRA and Marut Drones have formed a team that will support trials of operations beyond the visual line of sight in Telangana.

Using the lessons learned from ANRA’s recently completed BVLOS EOI trial, the Medical Alliance from the sky will deploy software connected to drones along with ANRA’s delivery and airspace management, providing a complete ecosystem to ensure unmanned The machine can deliver drugs safely and effectively. ANRA's delivery software provides a network for drone delivery by managing orders, inventory and supply of products, and then safely operating the drone in our UTM network.

FD-670 small quadcopter drone

Quadcopter drone 90 minutes endurance

FlyDragon FD-670 small quadcopter drone is a small size aerial platform for mapping, surveillance and inspection. Featuring 90 minutes of flight time, IP66 rating folding frame, and multiple failsafe, Its compact folding airframe enables easy operation and flexible maneuvering. – Forged from a combination of carbon fiber, PCB and CNC, allowing flight mission under a wide temperature range of -10℃-55℃. – With a built-in 14S 14000mAh high voltage li-ion battery, the flight time boosts up to 90 minutes with no payload, and it still reaches 45minutes with 2.5kg payload.

– Built-in antenna shields from dust and moist.
– Self-locking propellers .
– Under circumstances when Drone is in low voltage status or loss of signal, Return to Launch failsafe will be automatically triggered to save the drone.
– Plan the flight path that can be saved for future mission on either Herelink 5.5″ inch touch screen or on MissionPlanner/PC after linking herelink with PC through WiFi / Bluetooth/USB, drone flying becomes programmable and as simple as anyone can master. Alternatively, Herelink also serves as a streaming media server that delivers video and data (WAN) among team members on their devices like an ipad, mobile phone or PC, allowing a simultaneous team participation in the mission.
Specification Version: Quadcopter Battery-powered Version

Color: Black and White Material: Carbon Fiber, CNC, PCB
Control Range: 20km
Diagonal Wheelbase: 815mm
Unfolded Dimensions: 670mm*650mm*200mm (excluding propellers/landing gears)
Folded Dimensions: 440mm*210mm*200mm(excluding propellers/landing gears)
Empty Weight: 5.4kg (including battery)
Battery Weight: 2.8kg
Max Take-off Weight: 8kg
Flight Time: 90min (no payload) 68min (800g payload) 45min (2500g payload)
Max Speed: 30m/s Max Lifting Speed: 4m/s
Max Descent Speed: 3m/s
Max Angle of Pitch: 25°
Wind Resistance: 14m/s
Service Ceiling: 6000m
Propeller: 22*8 inch
Working Voltage: 50.4V
Working Temperature: -10℃-55℃
Carrying Case: 68cm*45cm*35cm

RTF version
Your Purchase Includes
RTF Package 1x ARF Combo
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x Herelink 2.4GHz Long Range HD Video Transmission System
1x 14S 14000mAh Li-ion Battery
2x (pair) 22 inch Carbon Fiber Propeller
1x Battery Charger
1x Carrying Case.
