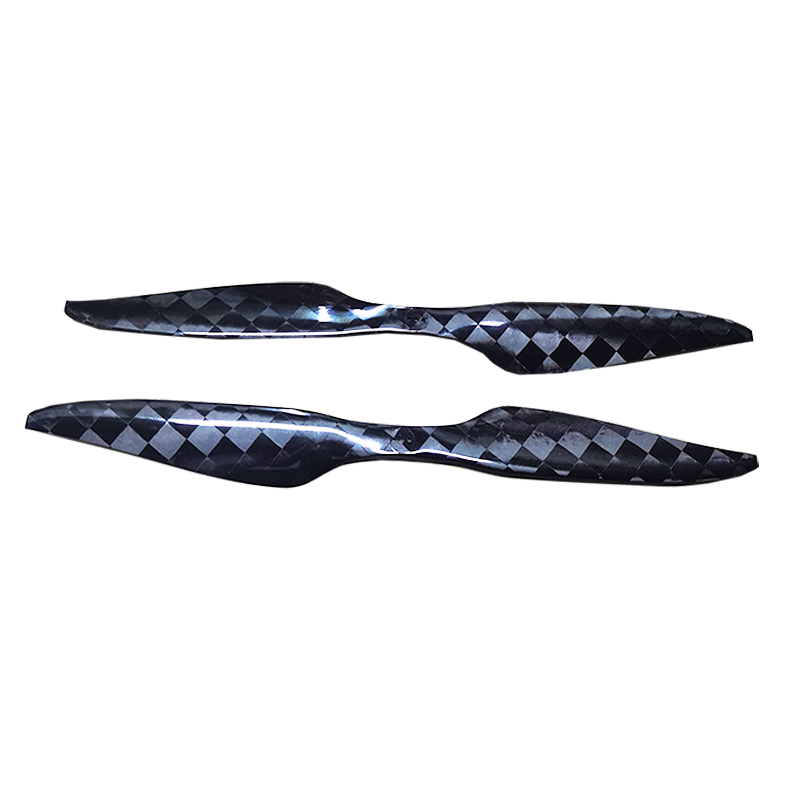

Ultra light carbon fiber propeller for VTOL UAV 22.3*6.7

Ultra light carbon fiber propeller for VTOL UAV 22.3*6.7 can get extra 2%-10% flight time. It is using T800 carbon cloth to get 16% static strength.  The weight is only 28 gram per pcs.

The advantage is ultra light weight, low moment of inertia and less motor vibration. Low inertia noise-reducing propeller, the overall process is T800 carbon cloth filled with aviation foam, and the leading edge and propeller tip are reinforced against stone impact. The root of the propeller is thickened to increase rigidity, and the mass distribution is close to the center, which is conducive to the acceleration and deceleration of the rotor, and can significantly improve the stability of the aircraft. The blade tip airfoil and shape have been specially designed such as thinning and pitch reduction, which reduces the auditory noise and reduces the psychological pressure of flight. 3.5kg with our power system, only need 360W input power.

Specification:

Model No. : 22.2*6.7

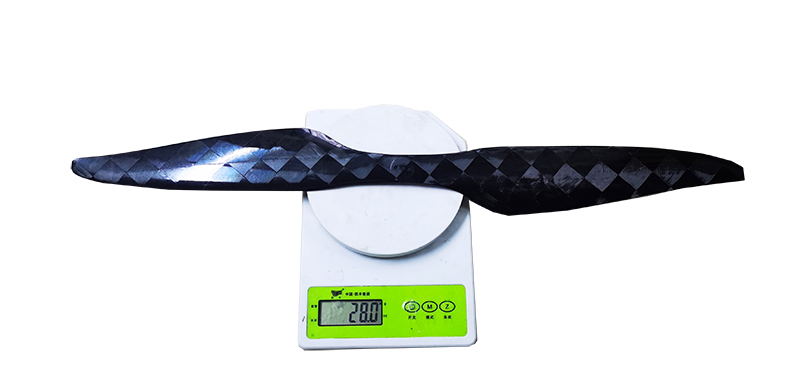

Weight: 28g/pcs

Diameter: 22.2 inch(567mm)

Pitch: 6.7 inch(172mm)

Recommended Thrust/RPM: 2.5-7KG/3300-5300 rpm

Recommended Max Thrust/RPM: 10KG/6500 rpm
