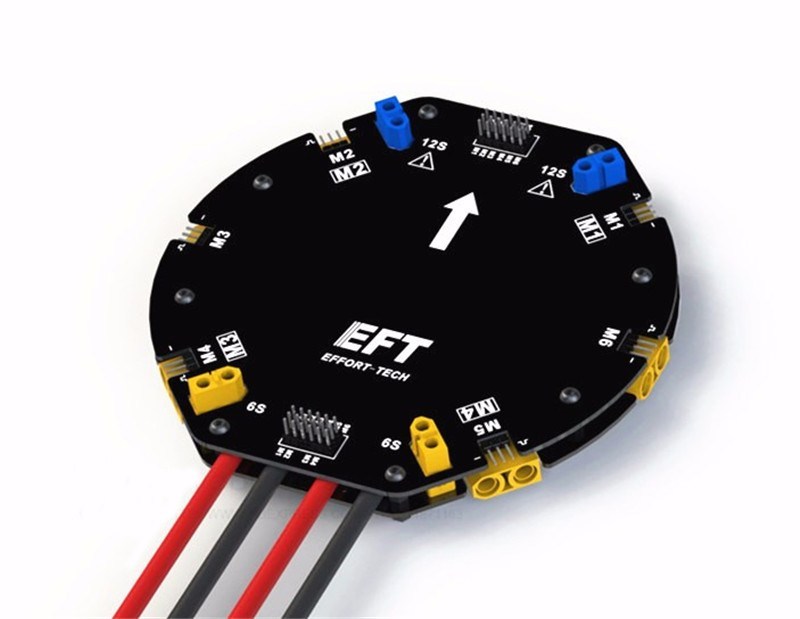

Large Current Power Distribution Board diy PDB Board 12S 480A for Agricultural drone Quadcopter Hexacopter
Tips:
If the need for 6S power supply, please connect the left side of the red line, and the right of the black line, the middle two is a series node, is a short circuit, can not be connected to the two lines in series, must be connected to the two batteries can be used normally
On the issue of flight control power supply, if the flight control support 12S power supply, can be directly connected to the 12S power supply interface, if the flight control support 6S power supply, can be directly connected to the 6S power supply interface.
On the issue of water supply to the pump, it is recommended to use 48V to 12V buck module, step-down module input XT60 male connector can be directly inserted in the
power supply board Diy PDB 12S power supply port, buck module output 12V, 8A, 12V pump power supply.
High current distribution board V3 on the basis of V1 and V2, integrated electrical signal line, the line is more convenient; electric power supply interface has been welded XT90 plug, no welding, fast plug, while increasing resistance flow; 6S and 12S power supply interface of the two, you can fly control and other equipment power supply, easy to use!
Tips: power board are the mother, you need to prepare their own head!
Package list:
EFT Power Distribution Management Module * 1set
