VTOL and Fixed-wing

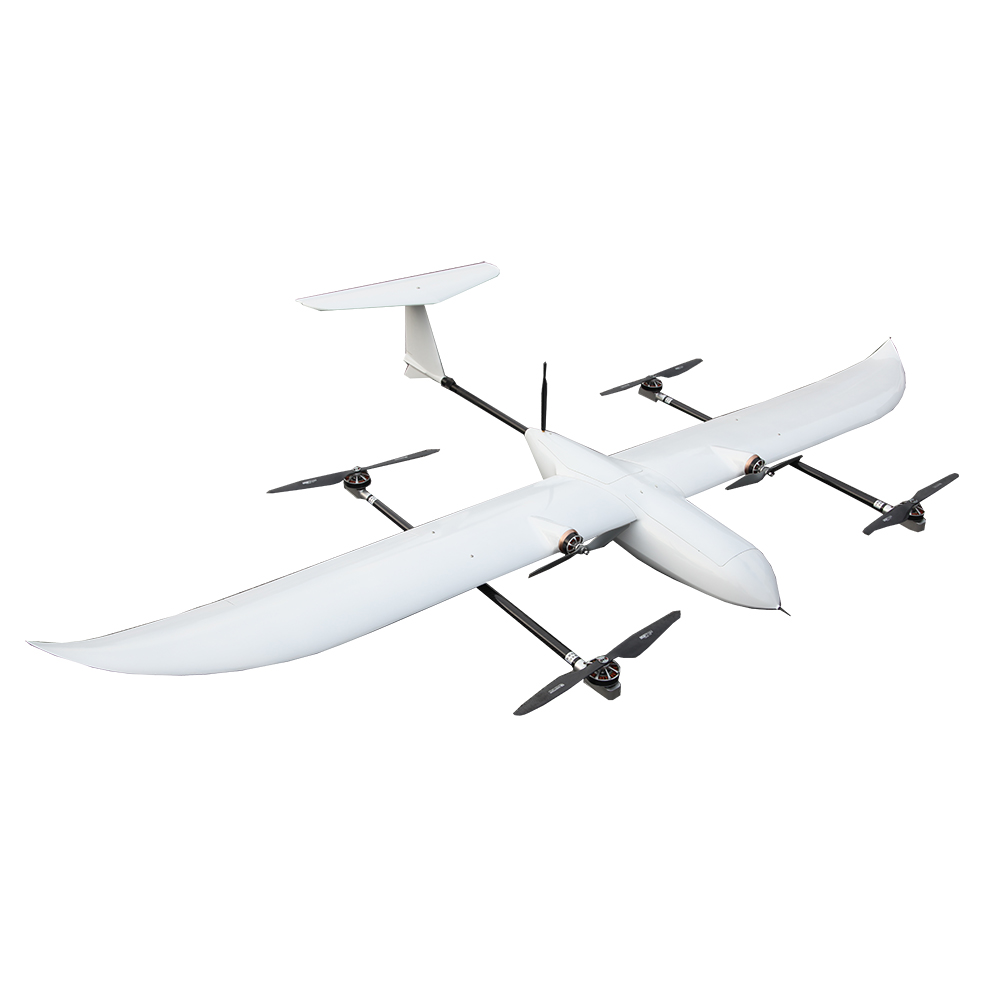

FDGC04 Fixed-wing VTOL

Product description: FlyDragon FDGC04 VTOL with dual motor design, the whole machine is made of high-strength composite materials, with high strength and long life. This machine has a large space, a heavy load, and a lon
INQUIRY

T tail VTOL 1-2KG payload 2-3 hours endurance for surveillance

FlyDragon FDGC04 VTOL with dual motor design, the whole machine is made of high-strength composite materials, with high strength and long life. This machine has a large space, a heavy load, and a long endurance. It is equipped with an independent cabin for independent inspection. It adopts quick disassembly structure, which is convenient to carry and assemble, and it takes 5 minutes to install and take off in the field. Strong wind resistance, able to fly normally in level 6 oncoming winds. Very suitable for surveying and mapping, monitoring, and long-endurance inspections.

Specifications:
Version: FDGC04 VTOL
Wingspan: 2800mm
Body length: 1600mm
Material: Composite Material
Max. Take-off Weight: 12kg
Suggested Max Payload: 1.5-2kg(excluding battery)
Endurance: 110min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
Recommended Cruising Speed: 18-25m/s
Suggested Take-off Altitude: 0~5000m
Wind Resistance: 5.5m/s-7.9m/s(12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 135cm*56cm*50cm
