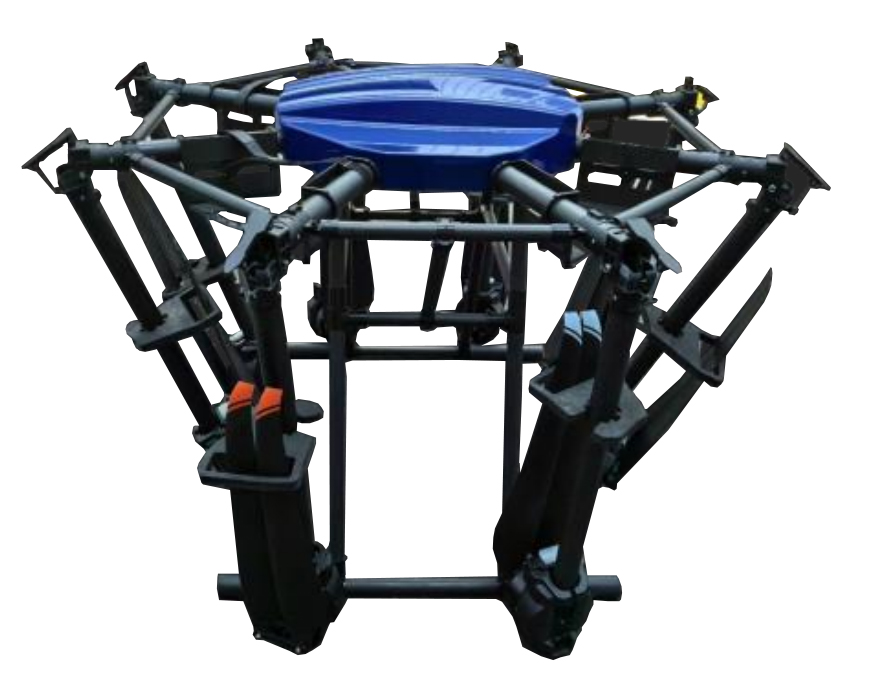

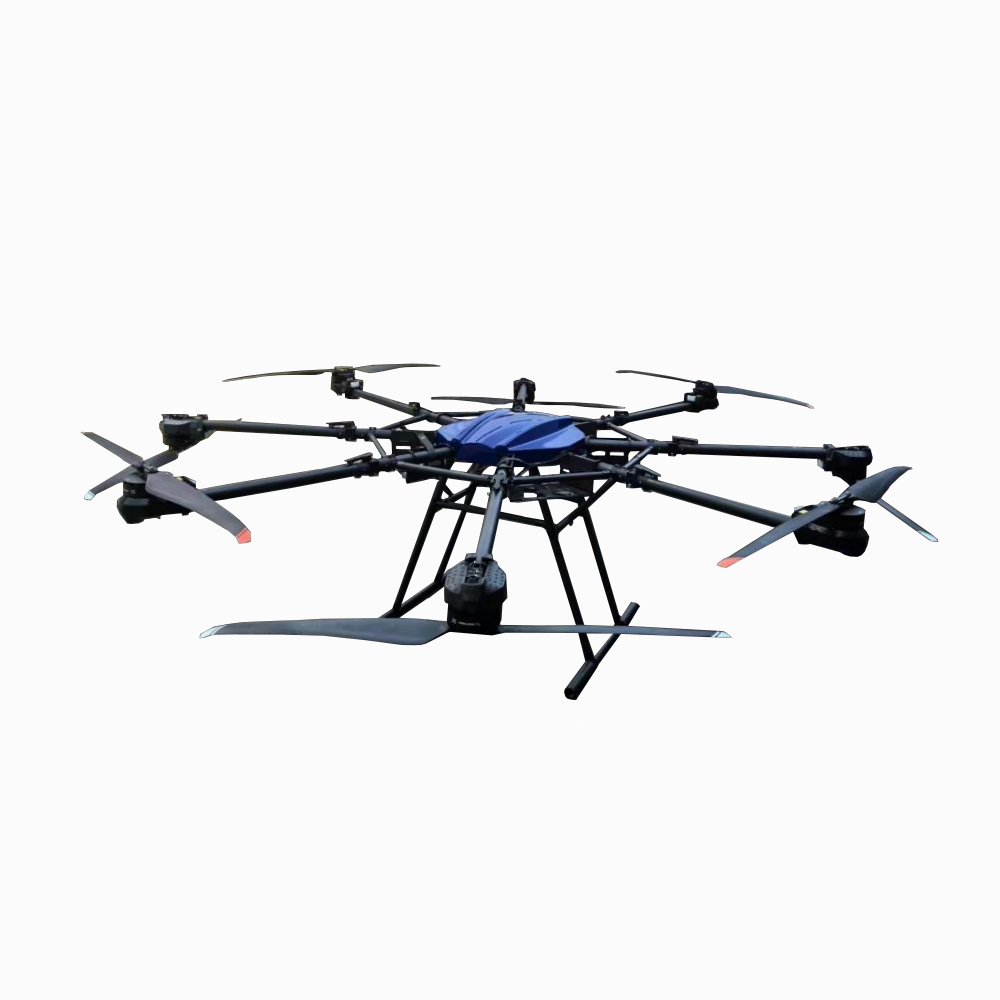

The FD3400 is a heavy payload UAV, maximum load is 100kg and endurance 30 minutes. The high-strength carbon fiber one-piece molded fuselage endows the whole machine with lighter and stronger performance. FD3400 heavy-duty UAV adopts dual RTK orientation, avoids magnetic compass interference, and has off-site take-off and landing functions. It's good for drone delivery.
Unfolded size: 3400*3400*1200mm
Folded size: 1240*1240*1200mm
Material: carbon fiber + aviation aluminum alloy
Maximum ascent speed: 6m/s
Maximum descent speed: 4m/s
Maximum level flight speed: 18m/s
Working temperature: -20°C-60°C
Maximum Takeoff weight: ≤220KG
Maximum load: 100kg
Endurance time: 70min (no load) 30min (100kg)
Battery: 4*18S 66000mah
Positioning system: GPS/Beidou
Layout: six-rotor
Motor: Hobbywing X13
Propeller size: 56 inch folding propeller
Maximum communication distance: 10KM
Wind resistance level: 7
Maximum flight altitude: 4000m
Contact: Fly Dragon Drone Tech.
Email: frank at dronefromchina.com
Add: NO. 9 Dayu Road PiDu distric, ChengDu 611730, China
