Multi-rotor drone

  • FD1600 industrial drone frame

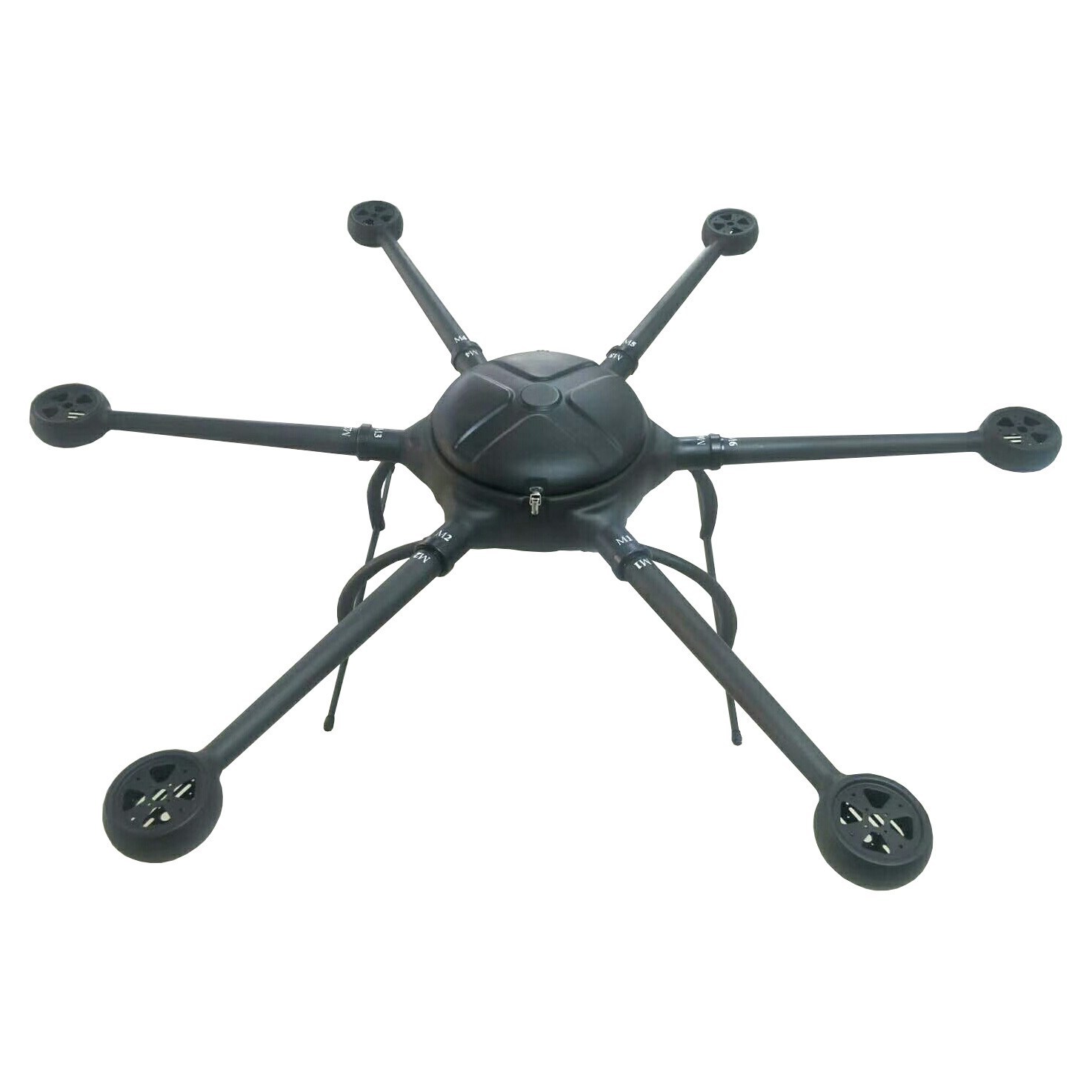

FD1600 industrial drone frame

FD1600 industrial drone frame

  • Product description: FDL1600 has a very unique hexacopter featuring high pressure molding full carbon fiber body, it is light weight and super high strength. To keep its super cool natural carbon fiber appearance, we lef
  • INQUIRY

hexacopter Done long flight time long duration large loading capacity for surveillance and inspection & survey and mapping

hexacopter Done  FDL1600 has a very unique hexacopter featuring high pressure molding full carbon fiber body,  it is light weight and super high strength. To keep its super cool natural carbon fiber appearance, we left it unpainted. The 90 minutes no-payload super long flight time makes it a perfect platform for mapping, surveillance, logistics and a lot more applications. Another advantage of a hexacopter: Its quiet flight characteristics. Thanks to the 6-rotor system, the copter stands stable in the air and can be reliably controlled even at high wind speeds. Compared to most quadrocopters, a hexacopter is not only quieter but also more powerful, more precisely controllable and has a higher payload.it also features wonderful quick-detach arms and landing gear, making it convenient for storage and easy to transport. Also the new landing gear and gimbal mounting point, new wiring method, create a really vast internal space. And the new ESC mounting type, features good heat dissipation, so don’t need to worry about heat dissipation problem even working with Tethered Power System. The 6-rotor system not only provides a more stable flight and more power, but is also an important safety feature.Thanks to its 6 rotor design, a hexacopter can also be controlled with 5 rotors in case of a motor or propeller fail. This means that in the event of a breakdown, you can still safely fly and land with 5 rotors. A clear advantage compared to a quadrocopter that would fall of the sky when they loose a rotor. In addition, the 6-rotor system provides more power and a stable flight behavior. A hexacopter has many advantages and is suitable for beginners as well as for demanding photographers and videographers due to its safe and stable flight characteristics. Even commercial drone pilots will find a safe, precise, powerful and flexible tool in it that can be equipped with additional accessories thanks to the increased load capacity.

Specification:

Wheelbase: 1600mm
Frame Weight: 3.8kg(with landing gear)
RTF Weight: 6.8kg(no battery)
Max. Take-off Weight: 28kg (36kg by using 8120 motor or T-motor P80)
Flight Time: 90 minutes(no payload)(4x 6s 30000mAh Li-ion battery);70 minutes(4x 6s 22000mAh Lipo battery)
Voltage: 48V
Battery: 6S 22000mAh Lipo x4; or 6S 30000mAh Li-ion x4

NOTE: THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC.
