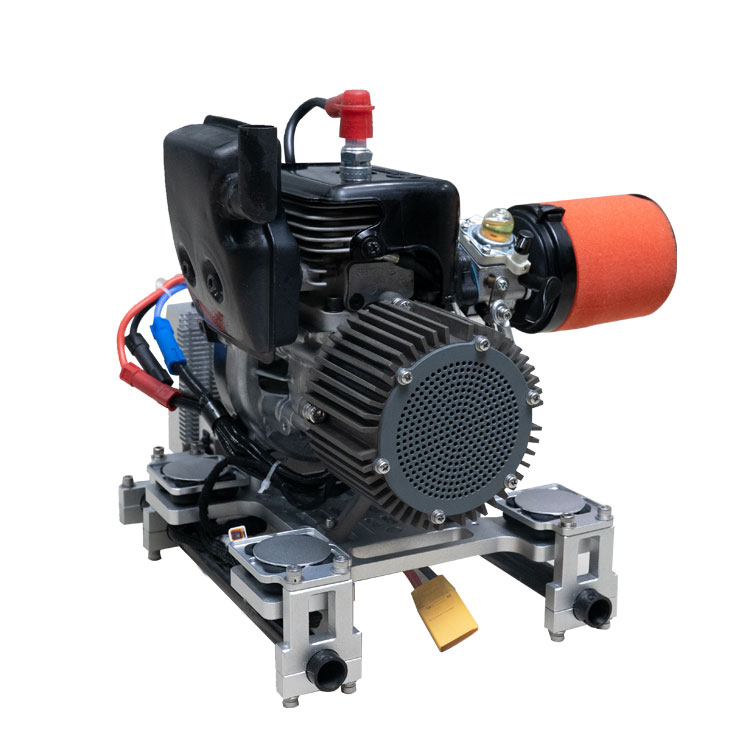

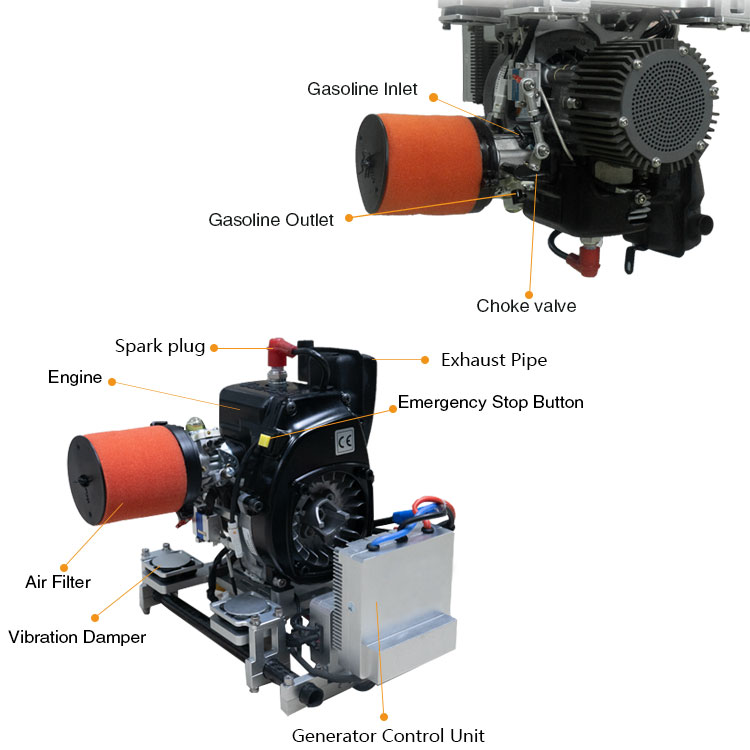

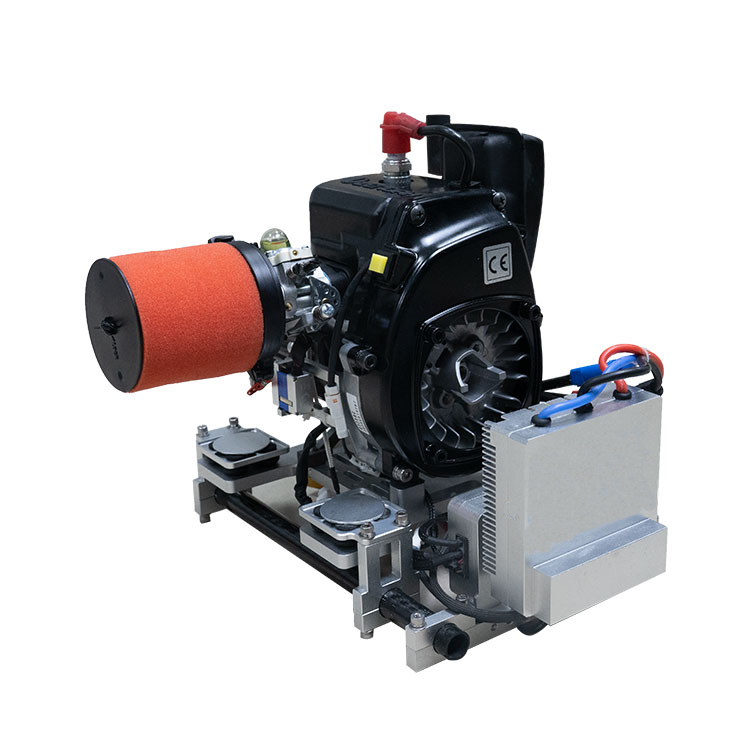

FD-2000W Hybrid UAV Gasoline Drone Generator

FlyDragon FD-2000W Hybrid UAV Gasoline Drone generator featuring small size, light weight, low power consumption and high efficiency is specially designed for multicopters to ensure long endurance.
FD-2000W adopts electrical starting method, which can be started through PWM or CAN-BUS, quick and convenient, and the generator can be restarted quickly after flameout in the air; and a Monitoring Software is provided to monitoring the generator working status in real time. The design of protects for over voltage, over currency, over temperature, under voltage and short circuit, substantially improves its safety. FD-2000W generator is very light, only 4.5kg. The continuous output power is 1800w and the output voltage is 48V. Besides this, a 12S lipo battery package is needed to be installed onboard to offer emergency back-up power for quick climbing and quick maneuvering.

As an onboard 2000w generator, FlyDragon FD-2000W offers plenty of power to motors to ensure a long endurance. The generator also features low noise, the noise level at a distance of 10 meters from the generator is 80dB, 30m–70dB. Maintenance is necessary for FD-2000W to keep its high performance. The maintenance cycle is 50hours. It is recommended to change the fuel filter every 50 hours.

Specifications:
Generator weight: 4.5kg
Voltage: 48V
Generator output: 1.8kw(continuous), 2kw(max)
RPM: 12000r/min
Size: 283x272x264mm
Fuel consumption: 620g/kw.h
Applicable UAV types: Multicopter
Recommended Max take-off Weight: 19kg
(Not exceeding the recommended take-off weight of the applicable UAV)
Service Altitude: <2000 meters
Start Method: One key starting (PWM or CAN-BUS)
Service Life: 300Hours
Maintenance Cycle: 50 Hours
Service temperature: -20 ~ 40°C
Mixture ratio: 25:1(gasoline:oil) (suggested #95 or above + 2T oil)

Your Purchase Includes:
1x 2000W Generator
1x 4.5L Fuel Tank
1x Fuel Level Sensor
5x Fuel Filter
1x Fuel Mixer
1x Screwdriver
